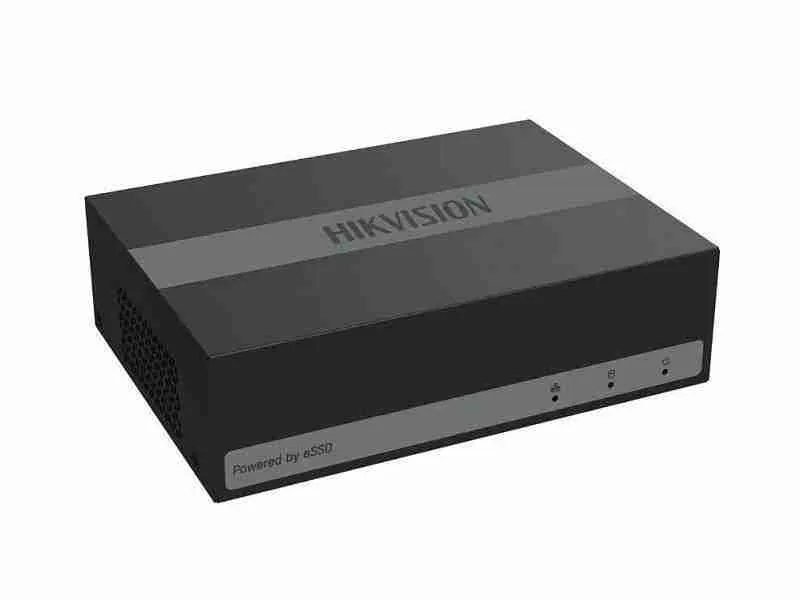

Hikvision 4ch 512GB eSSD DVR Built-in SSD ? DS-E04HGHI-D(B)

Advanced Recording Capabilities

The Hikvision DS-E04HGHI-D(B) delivers impressive video management features:

• Supports up to 4 camera channels with simultaneous recording
• Compatible with multiple video formats including HDTVI, AHD, CVI, and CVBS
• Enables H.265+ video compression for optimized storage efficiency
• Delivers crisp 1080p recording resolution across all channels
• Features HDMI and VGA outputs for flexible monitoring options

Built-in Storage Technology

The integrated 512GB eSSD in the DS-E04HGHI-D(B) provides several advantages over traditional storage solutions:

• Faster data transfer speeds compared to mechanical HDDs
• Enhanced durability with no moving parts, reducing failure risks
• Silent operation for noise-sensitive environments
• Lower power consumption for improved energy efficiency
• Pre-configured for immediate recording without additional setup

Connectivity and Expansion

Despite its compact design, the Hikvision DS-E04HGHI-D(B) offers comprehensive connectivity options:

• Multiple USB ports for mouse control and data export
• Network interface for remote viewing and management
• Audio input/output support for complete surveillance solutions
• SATA interface for additional storage expansion when needed

User-Friendly Operation

The DS-E04HGHI-D(B) features Hikvision’s intuitive interface, making system management straightforward:

• Simple device setup with guided configuration
• Accessible playback controls for quick footage review
• Smart search functionality to locate specific events
• Mobile app compatibility for on-the-go monitoring
• Regular firmware updates to enhance system capabilities

Ideal Users for the Hikvision DS-E04HGHI-D(B)

• Small retail businesses – The 4-channel capacity perfectly accommodates typical store layouts with coverage for entrance, sales floor, register, and storage areas
• Residential users – The whisper-quiet eSSD operation makes the DS-E04HGHI-D(B) suitable for home installations where noise could be disruptive
• Office environments – With 512GB storage capacity, the system can maintain approximately 2 weeks of continuous recording at 1080p, ideal for business hour monitoring
• First-time security system users – The pre-installed storage and user-friendly interface minimize setup complexity for those new to surveillance systems

Technical Specifications

Video Input/Output

• Camera inputs: 4 channels
• Video compression: H.265+/H.265/H.264+/H.264
• Recording resolution: Up to 1080p (1920×1080)
• Frame rate: Up to 15fps@1080p
• Video output: 1 HDMI, 1 VGA

Storage

• Built-in storage: 512GB eSSD
• Storage technology: Embedded solid-state drive
• Additional interfaces: 1 SATA interface (up to 10TB capacity)

Network

• Network interface: 1 RJ-45 10M/100M self-adaptive Ethernet
• Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Maximum user access: 128 users

General

• Power supply: 12 VDC
• Power consumption: ≤10W (without hard disk)
• Working temperature: -10°C to +55°C (14°F to 131°F)
• Working humidity: 10% to 90%
• Dimensions (W×D×H): 260 × 232 × 47mm (10.2″ × 9.1″ × 1.9″)
• Weight: ≈1.2kg (2.6lb) (without hard disk)

Features

• Playback channels: 4 channels
• Smart search capabilities: Motion detection, VCA search
• Backup modes: USB device, network
• Mobile app support: Hik-Connect
• Warranty: 3-year limited warranty
