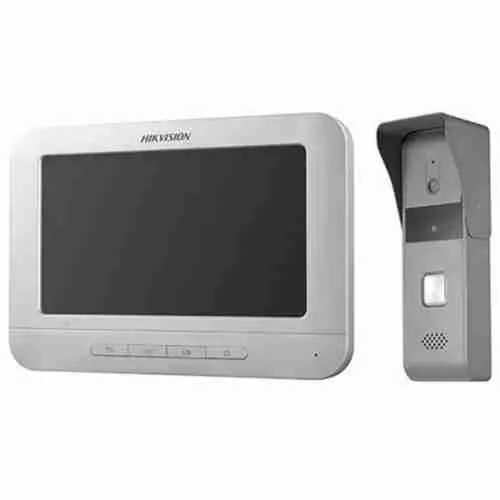

Hikvision Analog Intercom Kit DS-KIS203T

Complete Package Components

The DS-KIS203T bundle comes fully equipped with:

• DS-KB2421T-IM outdoor door station
• DS-KH2220 indoor monitor station
• 5-meter four-wire connection cable
• European power supply adapter (alternative standards available upon request)
• Mounting accessories for both units

This all-in-one package eliminates the need for purchasing additional components, making installation straightforward and efficient.

Door Station Technology

The outdoor unit features advanced video and audio capabilities:

• Full HD resolution (1920 × 1080) with 960 × 576 streaming capability
• High-quality 1/2.7″ CMOS sensor for clear image capture
• Wide field of view (66.2° horizontal, 37.2° vertical) for complete coverage
• Built-in omnidirectional microphone for clear audio reception
• Integrated loudspeaker for two-way communication
• Single call button design for intuitive operation

Furthermore, the door station is engineered with IP65 protection, ensuring reliable operation in challenging weather conditions. The compact dimensions (128 mm × 42 mm × 24.8 mm) allow for discreet installation while maintaining functionality.

Indoor Monitor Features

The DS-KIS203T’s indoor monitor provides a user-friendly interface with:

• 7-inch colorful TFT LCD screen with 800 × 480 resolution
• Physical button operation for reliable control
• Built-in omnidirectional microphone and loudspeaker
• Advanced noise suppression and echo cancellation technology
• Slim profile design (195.8 mm × 132.8 mm × 18.39 mm)

The indoor unit’s clear display and audio quality ensure residents can clearly see and communicate with visitors before deciding to grant access.

Simple Connection System

The DS-KIS203T utilizes a straightforward four-wire connection system that includes:

• 1 channel for video input
• 1 channel for audio input/output
• 1 channel for power supply
• 1 channel for grounding

This simplified wiring approach reduces installation complexity and time, making it ideal for retrofitting existing homes or implementing in new construction projects. Additionally, the door station features 1 relay output for electric lock control.

Ideal Users

• Homeowners seeking enhanced security: The DS-KIS203T provides visual verification of visitors with its high-resolution 1920 × 1080 camera and 7-inch display monitor.
• Single-family residences: With its single call button and streamlined design, this system is optimized for individual households rather than multi-unit buildings.
• DIY installers: The four-wire connection system and included 5-meter cable simplify installation, making this bundle accessible for moderately technical users.
• Homes in varied climates: With an operating temperature range of -10°C to 55°C and IP65 protection for the outdoor unit, the system functions reliably in diverse weather conditions.

Technical Specifications

Door Station (DS-KB2421T-IM)

Video Parameters

• Resolution: 1920 × 1080 (Stream resolution: 960 × 576)
• Lens: 1/2.7″ CMOS
• FOV: Horizontal: 66.2°, Vertical: 37.2°

Audio Parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker

Device Interface

• I/O output: 1 relay output
• Four-wire: 1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding

General

• Power supply: 12 VDC
• Power consumption: Max. 5W
• Working temperature: -10°C to +55°C (14°F to 131°F)
• Working humidity: 10% to 90%
• Dimensions: 128 mm × 42 mm × 24.8 mm
• Protective level: IP65

Indoor Station (DS-KH2220)

Display Parameters

• Operation method: Physical button
• Type: 7-inch colorful TFT LCD
• Resolution: 800 × 480

Audio Parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio quality: Noise suppression and echo cancellation

General

• Power supply: 12 VDC
• Power consumption: ≤5 W
• Working temperature: -10°C to +55°C (14°F to 131°F)
• Working humidity: 10% to 90%
• Dimensions (W × H × D): 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)
