Comprehensive Specifications
Camera Fundamentals

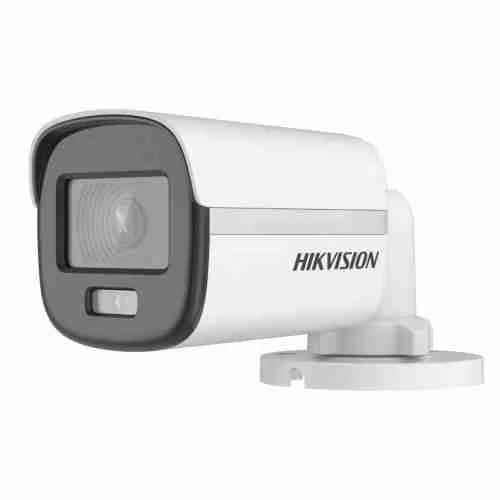

- Series: HD-Analog (TVI) Camera
- Form Factor: Outdoor Bullet Camera
- Color: Typically white
- Mounting: Wall or ceiling mount
Imaging Capabilities
- Resolution: Full HD 1080p (1920 × 1080)
- Image Sensor: 2 Megapixel, 1/2.7″ CMOS
- Lens: Fixed 6mm focal length
- Viewing Angle: Approximately 56° horizontal field of view
Advanced Detection Features
- PIR (Passive Infrared) Sensor: Integrated
- XOF Technology: Likely refers to extended outdoor functionality
- Motion Detection: Built-in PIR sensor for enhanced security
Infrared (IR) Characteristics
- IR LED Technology: Built-in infrared illumination
- IR Range: Typically 20-30 meters (65-98 feet)
- Day/Night Functionality: True Day/Night with IR Cut Filter
- Minimum Illumination:
- Color: 0.1 Lux @ (F1.2, AGC ON)
- Black & White: 0 Lux with IR enabled
Technical Performance
- Signal System: PAL/NTSC
- Output Interface: HD-TVI (Turbo HD)
- Signal-to-Noise Ratio: >65dB
- Electronic Shutter: Automatic
Environmental Protection
- IP Rating: IP66 (Dust-tight and water-resistant)
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Humidity: Up to 95% non-condensing
Power and Installation
- Power Supply: 12V DC
- Power Consumption: Approximately 4-5W
- Cable: Typically comes with pigtail cable for power and video
Special Features
- Smart IR: Prevents over-exposure in low-light conditions
- Digital Noise Reduction (DNR)
- UTC (Up-the-Coax) Control
- OSD (On-Screen Display) Menu
- Integrated PIR Detection
- AGC (Automatic Gain Control)
Recommended Applications
- Outdoor perimeter security
- Residential surveillance
- Small to medium business monitoring
- Parking areas
- Building entrances
- Areas requiring both video and motion detection
Unique Characteristics
- PIR Sensor Integration: Adds an extra layer of security beyond video detection
- Extended Outdoor Functionality (XOF): Designed for challenging external environments
- Balanced mix of video surveillance and motion detection
