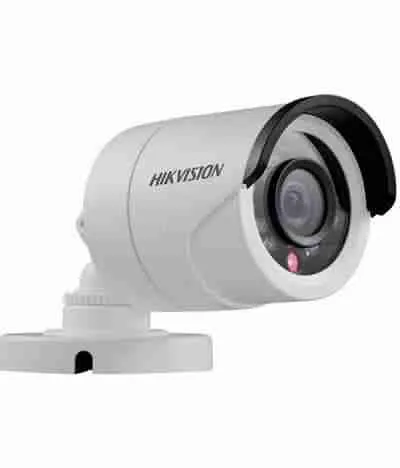

Hikvision DS-2CE16C0T-IRP (B) Fixed Mini Bullet Camera

Hikvision DS-2CE16C0T-IRP (B) Fixed Mini Bullet Camera

Crystal-Clear HD Surveillance

The Hikvision DS-2CE16C0T-IRP (B) delivers impressive 720p HD video output, ensuring you capture every detail with remarkable clarity. This fixed mini bullet camera incorporates a high-performance 2MP CMOS image sensor that produces sharp imagery even in challenging lighting conditions.

Additionally, the DS-2CE16C0T-IRP (B) features a fixed 3.6mm lens with a 92° viewing angle, providing comprehensive coverage of medium-sized areas such as retail spaces, offices, and residential properties.

Enhanced Night Vision Capabilities

Equipped with advanced IR technology, the Hikvision DS-2CE16C0T-IRP (B) ensures round-the-clock surveillance. The camera’s built-in infrared LEDs illuminate up to 20 meters (65 feet) in complete darkness, therefore maintaining clear video quality regardless of lighting conditions.

Moreover, the Smart IR technology intelligently adjusts IR intensity to prevent overexposure of subjects in close proximity to the camera, consequently delivering balanced nighttime imagery.

Durable Construction for All Environments

The DS-2CE16C0T-IRP (B) features robust engineering designed to withstand various environmental challenges:

• IP66 weatherproof rating ensures protection against dust and water jets
• Operating temperature range of -40°C to 60°C (-40°F to 140°F)
• Sturdy metal housing provides excellent physical protection
• UV-resistant materials prevent degradation from sun exposure

As a result, this Hikvision camera maintains reliable performance in both indoor and outdoor settings throughout the seasons.

Seamless Integration Options

The Hikvision DS-2CE16C0T-IRP (B) utilizes HD-TVI technology for transmission of high-definition video over conventional coaxial cabling. This technology enables:

• Easy upgrades from analog systems without rewiring
• Transmission distances up to 500m using RG59 coaxial cable
• Compatibility with Hikvision DVRs and third-party HD-TVI recorders
• Simple plug-and-play installation process

Furthermore, the DS-2CE16C0T-IRP (B) supports multiple video output formats including HD-TVI, AHD, CVI, and CVBS, thus ensuring compatibility with diverse surveillance infrastructures.

Ideal Users for the Hikvision DS-2CE16C0T-IRP (B)

• Small Business Owners: The camera’s 720p resolution and 20m IR range provide adequate coverage for retail spaces and offices without excessive bandwidth requirements.
• Residential Security Enthusiasts: The compact design and straightforward installation make the DS-2CE16C0T-IRP (B) perfect for DIY home security projects.
• Property Managers: The IP66 rating and extensive operating temperature range ensure reliable performance across multiple properties in various weather conditions.
• Security System Upgraders: Those transitioning from analog systems will appreciate the HD-TVI technology that allows HD video over existing coaxial infrastructure.

Technical Specifications

Image Sensor & Lens

• Sensor: 2MP CMOS
• Resolution: 1280 × 720
• Lens: 3.6mm fixed lens
• Field of View: 92° diagonal
• Day/Night: IR cut filter with auto switch

Video Performance

• Video Frame Rate: 25/30fps@720p
• Minimum Illumination: 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
• S/N Ratio: >62dB
• Supported Formats: HD-TVI, AHD, CVI, CVBS

IR Illumination

• IR Range: Up to 20 meters (65 feet)
• IR LEDs: 12 pieces
• Smart IR: Yes
• Wavelength: 850nm

Physical Characteristics

• Dimensions: 70mm × 149.5mm × 70mm (2.76″ × 5.89″ × 2.76″)
• Weight: Approximately 400g (0.88 lbs)
• Housing Material: Metal
• Finish: White
• Ingress Protection: IP66

Environmental Parameters

• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 90% or less (non-condensing)
• Power Supply: 12V DC ±25%
• Power Consumption: Max 4W

Certification & Compliance

• CE Certification
• FCC Compliance
• RoHS Conformity
• UL Listed
