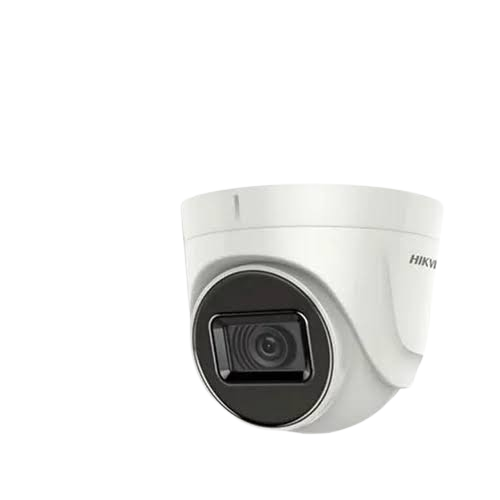

Hikvision DS-2CE56D0T-IT3F 3.6mm 1080P Dome (C)

Full HD Image Quality

The DS-2CE56D0T-IT3F captures detailed surveillance footage with:

• 2MP progressive scan CMOS sensor for sharp image definition
• 1080P resolution (1920 × 1080) for clear subject identification
• Effective frame rate of 25/30fps for smooth motion capture
• Minimum illumination of 0.01 Lux in color mode for low-light performance

Optimized Fixed Lens System

Equipped with a 3.6mm fixed lens, the DS-2CE56D0T-IT3F offers:

• 86.9° horizontal field of view for wide area coverage
• Fixed focus design for simplified installation and maintenance
• F1.2 aperture allowing more light capture in dim conditions
• Distortion-free image reproduction across the field of view

Reliable Night Vision Capability

The DS-2CE56D0T-IT3F maintains continuous monitoring through changing light conditions with:

• EXIR infrared technology providing up to 20m (65ft) night vision range
• Evenly distributed IR illumination minimizing hot spots
• Smart IR technology preventing overexposure of nearby subjects
• True Day/Night operation with automatic IR cut filter switching

Durable Construction for Various Environments

Designed for versatile deployment, the DS-2CE56D0T-IT3F features:

• IP66 weatherproof rating for outdoor installation capability
• Operating temperature range from -40°C to 60°C (-40°F to 140°F)
• Compact dome design with Φ86 × 69.8mm dimensions
• Impact-resistant housing providing physical protection

Flexible Implementation Options

The DS-2CE56D0T-IT3F accommodates different system requirements through:

• Four switchable video outputs (TVI/AHD/CVI/CVBS) for broad compatibility
• On-screen display menu for easy parameter adjustment
• 3D digital noise reduction for cleaner image quality
• Multiple white balance modes for accurate color reproduction

Ideal Users for the Hikvision DS-2CE56D0T-IT3F

• Small retail businesses – The 86.9° field of view from the 3.6mm lens provides efficient coverage of shop floors and entrance areas with minimal camera count
• Residential property owners – The compact dome design with 20m IR range delivers unobtrusive yet effective home security monitoring
• Entry-level commercial installations – The 1080P resolution offers sufficient detail for basic security needs while maintaining cost efficiency
• Indoor common areas – The discreet profile and fixed lens system is ideal for monitoring hallways, lobbies and reception areas
• Budget-conscious security projects – The essential feature set provides fundamental surveillance capabilities without unnecessary complexity

Technical Specifications

Image Sensor Specifications

• Sensor Type: 2MP CMOS
• Signal System: PAL/NTSC
• Effective Pixels: 1920(H) × 1080(V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed: 1/25(1/30) s to 1/50,000 s
• Lens: 3.6mm fixed lens
• Field of View: 86.9° (horizontal)
• Lens Mount: M12
• Day & Night: IR Cut Filter with Auto Switch

Video Parameters

• Resolution: 1080P
• Frame Rate: 25fps (PAL) / 30fps (NTSC)
• Video Output: 1Vp-p Composite Output (75Ω/BNC)
• HD Video Output: TVI/AHD/CVI/CVBS switchable
• S/N Ratio: >62dB

Feature Set

• OSD Menu: Available via coaxial control
• DNR (Digital Noise Reduction): 3D DNR
• White Balance: Auto/Manual
• BLC (Backlight Compensation): Supported
• AGC (Automatic Gain Control): Supported
• Private Masking: Up to 4 zones

IR Specifications

• IR Range: Up to 20 meters (65ft)
• IR Status: Auto/Manual
• IR LEDs: Built-in EXIR system
• Wavelength: 850nm

Physical Characteristics

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), humidity 90% or less
• Power Supply: 12V DC ±25%
• Power Consumption: Max 4W (with IR on)
• Protection Level: IP66
• Material: Plastic housing
• Dimensions: Φ86 × 69.8mm (Φ3.39″ × 2.75″)
• Weight: Approximately 230g (0.51lb)

Connection Interface

• Video Output: BNC connector
• Power Input: Power jack
