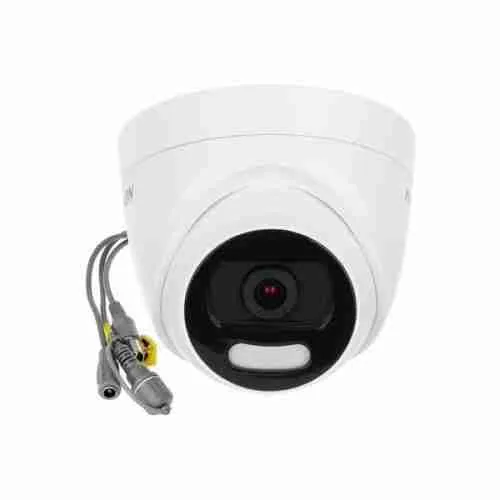

Hikvision DS-2CE72DFT-PIRXOF 2MP ColorVu Outdoor Turret Camera with PIR Siren & 3.6mm Lens

ColorVu Technology for Full-Color Night Vision

The DS-2CE72DFT-PIRXOF features Hikvision’s specialized ColorVu technology that ensures clear color imaging in challenging lighting conditions:

• Full-color video capture in near-darkness environments
• F1.0 super-aperture lens for maximum light gathering ability
• Enhanced sensor sensitivity for superior low-light performance
• Supplemental white light for color imaging at 0 lux

Additionally, the camera utilizes advanced 3D DNR (Digital Noise Reduction) to deliver cleaner images in low-light conditions without sacrificing detail or color accuracy, providing evidence-quality footage regardless of ambient lighting levels.

Active Deterrence with PIR and Siren

The DS-2CE72DFT-PIRXOF incorporates multiple active deterrence features that help prevent security incidents before they escalate:

• Built-in PIR (Passive Infrared) sensor for accurate human detection
• Audio warning with customizable voice messages
• Integrated siren with adjustable volume levels
• Bright visual warning light to deter potential intruders

Furthermore, these deterrence features can be configured to activate automatically upon detection or manually triggered through compatible DVR systems, offering flexible security response options based on specific requirements.

HD Video Quality with Analog Compatibility

The DS-2CE72DFT-PIRXOF delivers high-definition video while maintaining compatibility with existing analog infrastructure:

• 2MP resolution with 1920 × 1080 output for detailed imaging
• HD-TVI technology for transmission over coaxial cable up to 1500ft
• 30fps frame rate for smooth motion capture
• Multiple video output formats (TVI/AHD/CVI/CVBS) for versatile integration

Moreover, the camera supports UTC (Up the Coax) technology, allowing configuration and settings adjustments directly through the coaxial cable without requiring additional control wiring or network connections.

Weather-Resistant Turret Design

Engineered for reliable operation in challenging outdoor environments, the DS-2CE72DFT-PIRXOF offers:

• IP67 weatherproof rating ensuring protection against dust and water immersion
• Operating temperature range from -40°C to 60°C (-40°F to 140°F)
• 3-axis adjustment for flexible positioning and precise aiming
• Compact turret form factor for discreet yet effective installation

In addition, the camera’s turret design combines the vandal resistance of traditional domes with the flexible mounting options of bullet cameras, providing security professionals with a versatile solution for various outdoor deployment scenarios.

Ideal Users for the DS-2CE72DFT-PIRXOF

The Hikvision DS-2CE72DFT-PIRXOF is particularly well-suited for:

• Small business owners requiring proactive security
  • The built-in PIR sensor accurately detects human presence, reducing false alarms
  • Audio warnings and siren can prevent break-ins or vandalism before they occur
  • 2MP ColorVu technology ensures clear identification even in low-light conditions
• Residential property owners seeking comprehensive protection
  • Multiple deterrence features create layered security for homes
  • IP67 weatherproofing ensures reliable operation in various climate conditions
  • 3.6mm lens with 82.2° field of view effectively covers typical residential areas
• Retail establishments with after-hours security concerns
  • Full-color night imaging captures important details like clothing colors and vehicle descriptions
  • Active deterrence features help prevent shoplifting and property damage
  • Analog connectivity enables easy integration with existing security infrastructure
• Properties in areas with limited ambient lighting
  • F1.0 super-aperture lens captures significantly more light than standard security cameras
  • Supplemental white light ensures color video even in complete darkness
  • PIR sensor provides accurate detection even in challenging lighting conditions

Technical Specifications

Image Sensor and Output

• Sensor: 2MP CMOS image sensor
• Resolution: 1920 × 1080
• Frame rate: 30fps
• Min. illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Signal system: PAL/NTSC
• Video output: 1 HD analog output

Lens

• Focal length: 3.6mm fixed lens
• Aperture: F1.0
• Field of view: 103° diagonal, 82.2° horizontal, 44.3° vertical
• Focus range: 2.3m to infinity

Active Deterrence

• PIR detection range: Up to 11m (36ft)
• PIR detection angle: 82.2° horizontal
• Audio warning: Customizable voice messages
• Siren: Built-in with adjustable volume
• Warning light: White light LED with configurable patterns

Day & Night Functionality

• Day/Night switch: Smart white light
• White light distance: Up to 20m (65ft)
• White light type: LED
• White light control: Auto/Manual/PIR-triggered

Video Features

• Output format: TVI/AHD/CVI/CVBS switchable
• Wide Dynamic Range: DWDR (Digital WDR)
• Noise reduction: 3D DNR
• OSD menu: Available with compatible DVR
• Image enhancement: BLC, HLC, AGC, white balance

Physical Characteristics

• Dimensions: Φ127.3 × 117.6 mm (Φ5.01″ × 4.63″)
• Weight: Approximately 500g (1.1 lbs)
• Material: Metal & plastic
• Power supply: 12 VDC ±30%
• Power consumption: Max 6W

Environmental

• Operating temperature: -40°C to 60°C (-40°F to 140°F)
• Operating humidity: 90% or less (non-condensing)
• Protection level: IP67
• Mounting: Ceiling/wall mounting

Special Features

• Menu language: English and multiple other languages
• Smart light: Auto brightness control
• OSD configuration: Via UTC controller or compatible DVR
• Installation control: 3-axis adjustment
