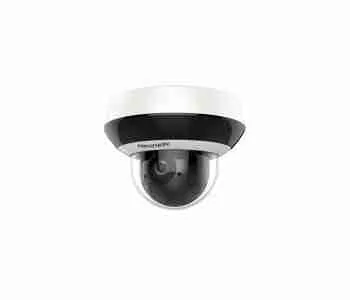

Hikvision DS-2DE2A204IW-DE3 (2.8-12mm)(C) 2MP PTZ IP camera

Hikvision DS-2DE2A204IW-DE3 PTZ IP Camera

Advanced Surveillance Technology

The Hikvision DS-2DE2A204IW-DE3 represents a significant advancement in PTZ surveillance technology. This 2MP network camera delivers crystal-clear footage with its 1/2.8″ progressive scan CMOS sensor. Moreover, the camera features a versatile 2.8-12mm motorized varifocal lens, allowing for flexible field-of-view adjustments to suit various monitoring environments.

Superior Imaging Capabilities

The DS-2DE2A204IW-DE3 excels in challenging lighting conditions thanks to its advanced imaging features:

• 2 megapixel (1920 × 1080) resolution at 30fps for smooth video capture
• 120dB Wide Dynamic Range for balanced exposure in high-contrast scenes
• IR illumination reaching up to 30 meters for reliable night monitoring
• 3D Digital Noise Reduction for cleaner images in low-light environments

Additionally, the camera incorporates H.265+ video compression technology, consequently reducing bandwidth and storage requirements by up to 80% compared to standard H.264 encoding.

Intelligent PTZ Functionality

The DS-2DE2A204IW-DE3 offers precise pan-tilt-zoom capabilities:

• 355° pan range with 0.1° to 80°/s adjustable speed
• 90° tilt range with 0.1° to 80°/s adjustable speed
• 4x optical zoom for detailed observation of distant subjects
• 16x digital zoom for additional magnification when needed

Furthermore, the camera features 25 preset positions with configurable patrol scanning, thus enabling automated monitoring of predefined areas of interest.

Robust Construction

Built for reliable operation in various environments, the DS-2DE2A204IW-DE3 features:

• IP66 weatherproof rating for protection against dust and water ingress
• IK10 vandal-resistant housing for deployment in public areas
• Operating temperature range of -30°C to 65°C (-22°F to 149°F)
• TVS 6000V lightning protection and surge protection

Ideal Users For The Hikvision DS-2DE2A204IW-DE3

The Hikvision DS-2DE2A204IW-DE3 is particularly suitable for:

• Small to medium business owners – The 2MP resolution and 4x optical zoom provide sufficient detail for monitoring retail spaces, while H.265+ compression reduces storage costs.
• Property managers – IP66 weatherproofing and 30m IR range make the DS-2DE2A204IW-DE3 ideal for outdoor perimeter monitoring in residential or commercial complexes.
• Educational institutions – The vandal-resistant IK10 rating and PTZ functionality with 25 presets allow for comprehensive coverage of hallways and common areas.
• Parking facility operators – WDR technology and 2.8-12mm varifocal lens ensure clear license plate capture under various lighting conditions.

Technical Specifications

Imaging Parameters

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Effective Pixels: 2 MP (1920 × 1080)
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Day & Night: IR Cut Filter
• Digital Zoom: 16×
• Wide Dynamic Range: 120 dB

Lens

• Focal Length: 2.8 to 12 mm, 4× optical zoom
• Focus Mode: Auto/Semi-automatic/Manual
• Field of View: Horizontal: 107.8° to 33.6°, Vertical: 57.2° to 19.1°, Diagonal: 125.5° to 38.6°
• Aperture Range: F1.6 to F3.5

PTZ Parameters

• Pan Range: 355°
• Pan Speed: Configurable, from 0.1°/s to 80°/s, preset speed: 80°/s
• Tilt Range: 0° to 90°
• Tilt Speed: Configurable, from 0.1°/s to 80°/s, preset speed: 80°/s
• Proportional Zoom: Pan and tilt movements adapt to zoom level
• Presets: 25 presets

Illumination

• IR Range: Up to 30 meters (98.4 feet)
• IR Intensity Adjustment: Auto/Manual

Network

• Network Storage: microSD/SDHC/SDXC card (up to 256 GB), NAS (NFS, SMB/CIFS)
• Network Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP
• API: ONVIF (Profile S, Profile G), ISAPI, SDK

Video

• Main Stream: 1920 × 1080, 1280 × 960, 1280 × 720 @ 30fps
• Sub-Stream: 704 × 576, 640 × 480, 352 × 288 @ 30fps
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/MP3

Power

• Power Supply: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug
• Power Consumption: 12 VDC, 1A, max. 12W

Physical Characteristics

• Protection Level: IP66, IK10
• Material: Metal + Plastic
• Dimensions: Φ 117 mm × 155.8 mm (Φ 4.61″ × 6.13″)
• Weight: Approximately 700 g (1.54 lb)
• Operating Conditions: -30°C to 65°C (-22°F to 149°F), Humidity ≤ 95%
• Surge Protection: TVS 6000V lightning protection, surge protection, and voltage transient protection
