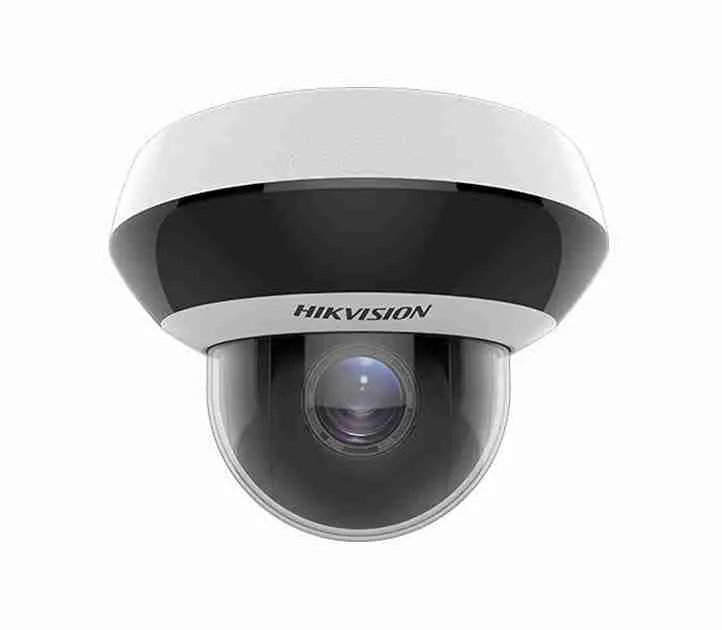

Hikvision DS-2DE2A204IW-DE3/W(C0)(S6) 2MP 4x IR PTZ Network Wi-Fi Camera

Hikvision DS-2DE2A204IW-DE3/W(C0)(S6) Wi-Fi PTZ Camera Price In Kenya

Next-Generation Surveillance with Wireless Connectivity

The Hikvision DS-2DE2A204IW-DE3/W(C0)(S6) combines advanced PTZ functionality with wireless capabilities. This 2MP network camera delivers professional-grade surveillance without complex cabling requirements. Furthermore, its compact design makes it suitable for both indoor and outdoor installations.

Imaging Capabilities

The DS-2DE2A204IW-DE3/W(C0)(S6) features a 1/2.8″ Progressive Scan CMOS sensor that captures crisp 2MP resolution images (1920 × 1080). Additionally, the 4x optical zoom lens provides flexible monitoring with a focal length range of 2.8mm-12mm. This combination enables the camera to maintain image clarity across different distances.

The camera also includes:

• 120dB Wide Dynamic Range for balanced exposure in challenging lighting conditions
• 3D Digital Noise Reduction for cleaner images in low light
• IR illumination effective up to 20 meters for nighttime monitoring
• H.265+ video compression technology reducing storage requirements by up to 80%

Pan-Tilt-Zoom Performance

The DS-2DE2A204IW-DE3/W(C0)(S6) delivers precise positioning control with:

• 355° pan range for comprehensive horizontal coverage
• -5° to 90° tilt capabilities allowing vertical flexibility
• 4x optical zoom for detailed close-ups when needed
• Pre-set patrol modes for automated surveillance routes

Wi-Fi Connectivity & Network Features

The Hikvision DS-2DE2A204IW-DE3/W(C0)(S6) incorporates built-in Wi-Fi connectivity (IEEE802.11b/g/n), eliminating the need for Ethernet cabling. Consequently, installation becomes significantly more flexible. The camera supports:

• Dual-stream encoding for efficient network transmission
• Multiple network protocols including IPv4/IPv6, HTTP, HTTPS, and RTSP
• ONVIF compliance for third-party integration
• Up to 20 simultaneous live view connections

Intelligent Features

The DS-2DE2A204IW-DE3/W(C0)(S6) includes smart functions that enhance surveillance capabilities:

• Motion detection with customizable sensitivity and zones
• Line crossing detection for perimeter security
• Intrusion detection with configurable thresholds
• Face detection technology
• Audio exception detection for comprehensive monitoring

Ideal Users

This Hikvision DS-2DE2A204IW-DE3/W(C0)(S6) is particularly well-suited for:

• Small to Medium Business Owners – The 2MP resolution combined with 4x zoom provides adequate detail for retail environments, while Wi-Fi connectivity simplifies installation in existing structures.
• Residential Security Enthusiasts – The 20-meter IR range and compact design make the DS-2DE2A204IW-DE3/W(C0)(S6) perfect for home security, covering driveways and yards with a single camera.
• Remote Property Managers – With ONVIF compliance and multi-stream capability, this camera integrates smoothly with remote monitoring systems, allowing oversight from anywhere.
• Temporary Installation Specialists – The wireless connectivity of the DS-2DE2A204IW-DE3/W(C0)(S6) eliminates cabling requirements, making it ideal for quick deployment at events or construction sites.

Technical Specifications

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Day & Night: IR Cut Filter
• Digital Zoom: 16x
• Focus Mode: Auto/Semi-automatic/Manual

Lens

• Focal Length: 2.8 mm to 12 mm, 4x optical zoom
• Field of View: 94.8° to 24.1° (Horizontal), 53.9° to 13.6° (Vertical)
• Aperture: F1.6 to F2.9
• Close Focus Distance: 0.5 m to 1.5 m (1.64 ft to 4.92 ft)

PTZ

• Pan Range: 355°
• Pan Speed: 0.1° to 80°/s
• Tilt Range: -5° to 90° (Auto Flip)
• Tilt Speed: 0.1° to 50°/s
• Presets: 256
• Patrol Scans: 8 patrols, up to 32 presets per patrol

IR

• IR Range: Up to 20 m (65.6 ft)
• IR Intensity: Automatically adjusted based on zoom ratio

Video & Audio

• Max. Resolution: 1920 × 1080
• Frame Rate: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate: 8 kbps to 320 kbps

Network

• Wi-Fi: Built-in, IEEE802.11b/g/n
• Network Storage: microSD/SDHC/SDXC card (128 GB), NAS
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, RTSP
• API: ONVIF (Profile S, Profile G), ISAPI

Interface

• Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
• Alarm: 1 input, 1 output (max. 24 VDC, 1A)
• Power Interface: 12 VDC

Environmental

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
• Protection Level: IP66 standard
• Vandal Resistance: IK10

Physical

• Dimensions: Φ109 × 150.9 mm (Φ4.3″ × 5.9″)
• Weight: Approximately 700 g (1.54 lb)
• Power Consumption: 12 VDC, 0.7 A, max. 9 W
