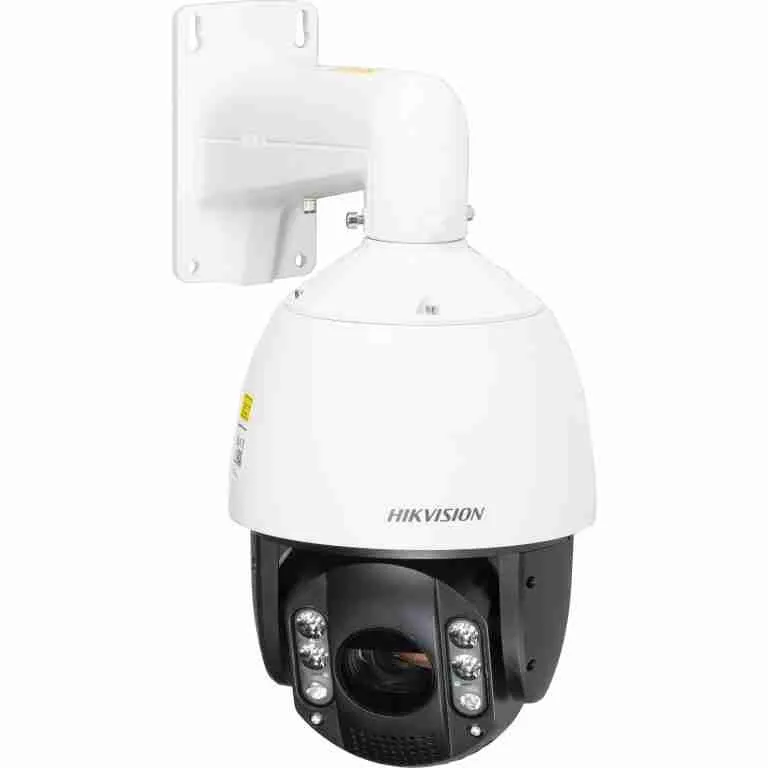

Hikvision DS-2DE7A432IW-AEB(T5) 4MP AcuSense IR PTZ Camera

Hikvision DS-2DE7A432IW-AEB(T5) 4MP AcuSense IR PTZ Camera Price In Kenya

The Hikvision DS-2DE7A432IW-AEB(T5) represents a significant advancement in surveillance technology. This 4MP AcuSense IR PTZ Camera combines powerful imaging capabilities with intelligent features to deliver exceptional monitoring performance in diverse environments.

Advanced Imaging System

The DS-2DE7A432IW-AEB(T5) features a premium 1/1.8″ progressive scan CMOS sensor that captures crisp 4MP resolution images (2560 × 1440). Furthermore, the camera includes:

• 32× optical zoom lens with precise motorized control
• 16× digital zoom for detailed inspection of distant objects
• 360° endless pan rotation with tilt range from -15° to 90°
• IR illumination effective up to 200 meters for comprehensive night vision

Intelligent AcuSense Technology

Equipped with Hikvision’s proprietary AcuSense technology, the DS-2DE7A432IW-AEB(T5) utilizes deep learning algorithms to distinguish humans and vehicles from other moving objects. Consequently, this reduces false alarms by up to 90% compared to standard motion detection systems.

The camera’s intelligent features include:

• Human and vehicle classification
• Line crossing detection
• Intrusion detection
• Region entrance/exit monitoring
• Object removal detection

Robust Environmental Adaptability

The DS-2DE7A432IW-AEB(T5) is engineered to operate reliably in challenging conditions. Therefore, installations in harsh environments benefit from:

• IP67 weatherproof rating for dust and water resistance
• IK10 vandal-resistant housing for physical protection
• Operating temperature range from -40°C to 70°C
• Built-in wiper to maintain clear vision during rain or snow
• Anti-corrosion coating for coastal and industrial environments

Network Capabilities & Storage

The Hikvision DS-2DE7A432IW-AEB(T5) offers comprehensive connectivity options:

• H.265+/H.265/H.264+/H.264 video compression
• Triple streaming capability for different network environments
• Up to 30fps video recording at full 4MP resolution
• Support for microSD/SDHC/SDXC card (up to 256GB) for edge storage
• ONVIF compliance for seamless third-party integration

Ideal User Applications

The DS-2DE7A432IW-AEB(T5) is particularly well-suited for:

• Critical infrastructure protection – The 200m IR range and 32× optical zoom enable monitoring of large perimeters with fewer cameras
• City surveillance – AcuSense technology provides accurate human/vehicle detection while reducing false alarms in busy urban environments
• Transportation hubs – 360° endless pan and -15° to 90° tilt offers comprehensive coverage of large areas like airports and train stations
• Industrial facilities – IP67 and IK10 ratings ensure reliability in harsh manufacturing or processing environments
• Large retail properties – 4MP resolution provides facial detail for identifying persons of interest across shopping centers and parking areas

Technical Specifications

Image Sensor & Lens

• Sensor: 1/1.8″ Progressive Scan CMOS
• Resolution: 4MP (2560 × 1440)
• Lens: 6.0-192mm, 32× optical zoom
• Digital zoom: 16×
• Field of view: 62.8° to 2.4° (wide to tele)
• Min. illumination: Color – 0.005 Lux, B/W – 0.001 Lux, 0 Lux with IR

PTZ Capabilities

• Pan range: 360° endless
• Pan speed: 0.1°-300°/s
• Tilt range: -15° to 90°
• Tilt speed: 0.1°-200°/s
• Presets: 300
• Patrol scans: 8 patrols, up to 32 presets per patrol
• Pattern scans: 4 patterns, with 10-minute recording time per pattern

Video & Compression

• Main stream: 2560×1440 @ 30fps
• Sub-stream: 704×576 @ 30fps
• Third stream: 1920×1080 @ 30fps
• Video compression: H.265+/H.265/H.264+/H.264
• Bit rate: 32 Kbps to 16 Mbps

Intelligent Features

• Deep learning-based human and vehicle classification
• Line crossing detection
• Intrusion detection
• Region entrance/exit detection
• Object removal detection
• Audio exception detection
• Smart tracking with auto-zoom

Network & Storage

• Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous live view: Up to 20 channels
• User/Host level: Up to 32 users, 3 levels (Administrator, Operator, User)
• Storage: microSD/SDHC/SDXC card slot, up to 256GB

Physical Characteristics

• Power: 24 VAC/Hi-PoE, max 40W
• Working temperature: -40°C to 70°C (-40°F to 158°F)
• Protection level: IP67, IK10, TVS 6000V lightning protection
• Dimensions: Φ220 × 353.4 mm (Φ8.66″ × 13.91″)
• Weight: Approximately 5.5 kg (12.13 lb)
