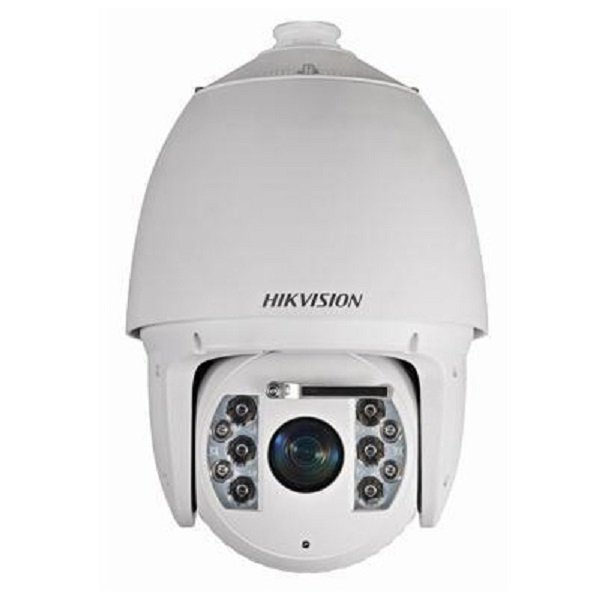

Hikvision DS-2DF728AW 2MP 20X Network IR PTZ Dome Camera

Hikvision DS-2DF728AW Network IR PTZ Dome Camera Price In Kenya

Professional Surveillance Solution

The Hikvision DS-2DF728AW combines advanced imaging capabilities with precise positioning control. This 2MP network PTZ dome camera delivers exceptional clarity in challenging surveillance environments. Moreover, it offers comprehensive coverage with its 20X optical zoom and 360° continuous pan rotation.

Superior Imaging Technology

The DS-2DF728AW features a 1/2.8″ progressive scan CMOS sensor that captures 2MP (1920 × 1080) resolution footage at 60fps. Additionally, the camera incorporates:

• Smart IR technology with 150m illumination distance
• 120dB Wide Dynamic Range for balanced imaging in high-contrast scenes
• 3D Digital Noise Reduction for clear night vision
• Defog capability for maintaining image clarity in adverse weather

Precision Movement and Positioning

The DS-2DF728AW offers exceptional control with:

• 20X optical zoom (4.7mm-94mm focal length)
• 360° endless pan rotation at speeds up to 240°/s
• -15° to 90° tilt range with auto flip function
• ±0.1° positioning accuracy
• 300 preset positions with configurable patrol scanning

Furthermore, the camera features Smart Tracking that automatically follows moving objects within its field of view.

Weather-Resistant Design

Built to withstand harsh environments, the DS-2DF728AW features:

• IP66 weather protection rating
• IK10 vandal-resistant housing
• Built-in wiper for lens cleaning
• Operating temperature range of -40°C to 70°C
• TVS 6000V lightning protection

Network and Storage Capabilities

The DS-2DF728AW supports:

• H.265+/H.265/H.264+/H.264 video compression
• Tri-streaming for flexible transmission
• microSD/SDHC/SDXC card slot (up to 256GB)
• Multiple network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP

Ideal Users

• Large-scale commercial properties – The DS-2DF728AW’s 20X zoom and 150m IR range provide extensive coverage with fewer cameras needed.
• Critical infrastructure facilities – With its IP66/IK10 ratings and -40°C to 70°C operating range, the DS-2DF728AW performs reliably in harsh industrial environments.
• Transportation hubs – The 60fps capture rate and Smart Tracking enable smooth monitoring of fast-moving objects.
• Perimeter security applications – 360° continuous rotation and 150m IR illumination ensure complete coverage of large perimeters.

Image Sensor Specifications

• Sensor type: 1/2.8″ Progressive Scan CMOS
• Effective pixels: 2MP (1920 × 1080)
• Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.0005 Lux @(F1.6, AGC ON); 0 Lux with IR
• Shutter speed: 1/1 s to 1/30,000 s

Optical Specifications

• Focal length: 4.7mm-94mm, 20X optical zoom
• Aperture range: F1.6-F3.5
• Focus mode: Auto/Semi-automatic/Manual
• Field of view: 61.4°-2.9° (Wide-Tele)
• Min. working distance: 10mm-1500mm (Wide-Tele)

PTZ Specifications

• Pan range: 360° endless
• Pan speed: 0.1°-240°/s
• Tilt range: -15°-90° (auto flip)
• Tilt speed: 0.1°-200°/s
• Proportional zoom: Pan and tilt speeds adjust automatically with zoom ratio
• Presets: 300
• Patrol: 8 patrols, up to 32 presets per patrol

IR Specifications

• IR range: Up to 150 meters
• Wavelength: 850nm
• IR intensity adjustment: Auto/Manual

Video & Audio

• Maximum resolution: 1920 × 1080
• Frame rate: Main stream: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Video compression: H.265+/H.265/H.264+/H.264
• Audio compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio bit rate: 32Kbps-128Kbps

Network Specifications

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous live view: Up to 20 channels
• API: Open Network Video Interface (ONVIF, ISAPI)
• Client: iVMS-4200, Hik-Connect

Interface Specifications

• Network interface: RJ45 10M/100M Ethernet
• Audio: 1 input (line in), 1 output (line out)
• Alarm: 2 inputs, 1 output
• Storage: microSD/SDHC/SDXC slot, up to 256GB

Physical Specifications

• Power supply: 24 VAC & Hi-PoE
• Power consumption: 30W max; 60W with heater on
• Operating conditions: -40°C to 70°C (-40°F to 158°F); Humidity ≤ 90%
• Protection level: IP66, IK10, TVS 6000V lightning protection
• Material: Metal alloy
• Dimensions: φ220 × 353.4 mm (φ8.66″ × 13.91″)
• Weight: Approximately 4.5 kg (9.92 lb)
