Hikvision DS-7108HGHI-MI 8Ch 720p Mini DVR

Compact Surveillance Solution with Advanced Encoding

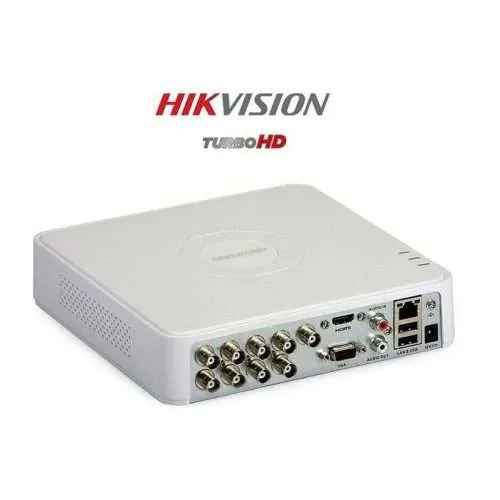

The Hikvision DS-7108HGHI-MI offers reliable video surveillance capabilities in a space-efficient Mini 1U design. This 8-channel Digital Video Recorder leverages H.265 compression technology to maximize storage efficiency while maintaining excellent image quality. The compact form factor makes the DS-7108HGHI-MI ideal for installations where space is at a premium.

Video Recording and Management Features

The DS-7108HGHI-MI supports up to 8 analog cameras with 720p resolution recording. Additionally, this DVR provides:

• Simultaneous HDMI and VGA outputs for flexible monitor connectivity
• Real-time live view with responsive navigation
• Advanced motion detection capabilities
• Customizable recording schedules
• User-friendly interface for simplified operation

Furthermore, the Hikvision DS-7108HGHI-MI incorporates intelligent playback features that allow for efficient video retrieval based on time, events, or tags.

Network Connectivity and Remote Access

Connect to the DS-7108HGHI-MI remotely through:

• Built-in Ethernet port supporting up to 100 Mbps
• Mobile application compatibility (Hik-Connect)
• Web browser interface for convenient access
• DDNS support for reliable remote connection

Moreover, the system can be configured to send email alerts with snapshots when motion is detected, providing real-time surveillance intelligence.

Storage and Backup Options

The Hikvision DS-7108HGHI-MI includes:

• Support for one SATA hard drive (up to 10TB capacity)
• USB ports for external backup options
• Network backup capabilities
• Efficient H.265 compression reducing storage requirements by up to 50% compared to H.264

Consequently, users can maintain longer recording periods without sacrificing video quality.

Ideal Users for the Hikvision DS-7108HGHI-MI

• Small Business Owners – Perfect for retail stores, offices, and small warehouses due to the 8-channel capacity and compact design
• Residential Users – Suitable for home security applications where high-definition monitoring and straightforward setup are priorities
• Property Managers – Ideal for managing multiple small properties with its remote monitoring capabilities and motion-triggered alert system
• First-time CCTV Users – The intuitive interface makes the DS-7108HGHI-MI accessible for users new to video surveillance systems

Technical Specifications

Video/Audio Input

• Video compression: H.265+/H.265/H.264+/H.264
• Analog camera input: 8-ch BNC interface (1.0Vp-p, 75 Ω)
• HDTVI input: 720p resolution
• Audio compression: G.711u
• Audio input: 1-ch RCA (2.0 Vp-p, 1 KΩ)

Video/Audio Output

• HDMI/VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Recording resolution: 720p/WD1/4CIF/VGA/CIF
• Frame rate: Main stream: 720p@15fps; Sub-stream: CIF@15fps

Hard Disk

• SATA: 1 SATA interface
• Capacity: Up to 10TB capacity for each disk

External Interface

• Network interface: 1, RJ-45 10M/100M self-adaptive Ethernet interface
• USB interface: 2 × USB 2.0
• Alarm in/out: N/A

General Specifications

• Power supply: 12 VDC
• Power consumption: ≤8W (without hard disk)
• Working temperature: -10°C to +55°C (14°F to 131°F)
• Working humidity: 10% to 90%
• Dimensions (W × D × H): 260 × 222 × 45mm (10.2″ × 8.7″ × 1.8″)
• Weight: ≤1kg (2.2lb) (without hard disk)
