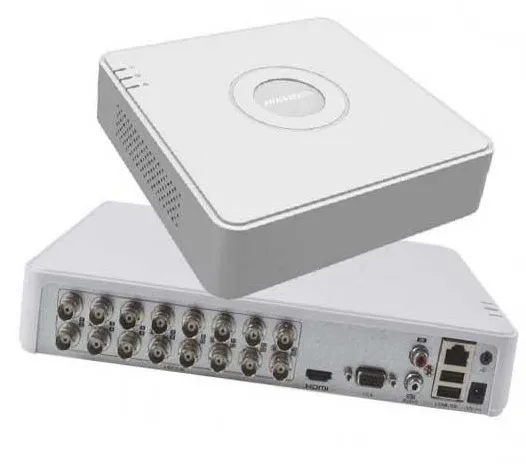

Hikvision DS-7116HGHI-MI 16 Channel DVR

Advanced Surveillance Recording System

The Hikvision DS-7116HGHI-MI represents a comprehensive digital video recording solution designed for multi-camera security setups. This 16-channel DVR captures, processes, and stores surveillance footage with remarkable efficiency. Moreover, the system features H.265+ video compression technology that significantly reduces bandwidth and storage requirements without compromising video quality.

Key Technical Capabilities

The DS-7116HGHI-MI supports simultaneous recording across all 16 channels at 1080p resolution. Additionally, this DVR offers:

• Real-time recording at 15 fps per channel at full HD
• Support for HDTVI, AHD, CVI, and analog cameras
• HDMI and VGA video outputs at up to 1080p resolution
• Intelligent video analysis capabilities including motion detection
• Remote viewing via Hik-Connect mobile app and web interface

Storage and Connectivity

The Hikvision DS-7116HGHI-MI accommodates up to 2 SATA hard drives with a maximum capacity of 10TB each. Furthermore, the system features:

• Network throughput of 64 Mbps for smooth remote access
• USB ports for backup operations and peripheral connections
• Efficient storage management with overwrite functionality
• Multiple network protocols including DHCP, DDNS, and NTP

Streamlined User Interface

Navigation through the DS-7116HGHI-MI interface is intuitive and responsive. The on-screen display offers straightforward access to all functions, while the system provides scheduled, motion, and alarm-triggered recording options. Consequently, users can customize their surveillance approach based on specific security requirements.

Ideal Users for the Hikvision DS-7116HGHI-MI

This DVR system is particularly suitable for:

• Small to medium businesses requiring comprehensive surveillance
  • The 16-channel capacity allows coverage of multiple entry points and critical areas
  • Network capabilities enable remote monitoring of business premises
• Retail establishments with diverse monitoring needs
  • Motion detection features help track customer activity and potential security issues
  • The 1080p resolution ensures clear identification of individuals and activities
• Property managers overseeing multiple locations
  • Remote access capabilities facilitate monitoring across different sites
  • The robust storage options (up to 20TB) support extended recording periods
• Residential users with extensive property coverage requirements
  • Support for various camera types offers flexibility in system design
  • User-friendly interface reduces the learning curve for non-technical users

Technical Specifications

Video and Audio

• Video compression: H.265+/H.265/H.264+/H.264
• Recording resolution: Up to 1080p (1920×1080)
• Frame rate: Up to 15 fps per channel at 1080p
• Video input: 16 channels, BNC connectors
• Audio compression: G.711u
• Audio input/output: 1-ch/1-ch

Storage and Backup

• Hard drive interface: 2 SATA interfaces
• Maximum capacity: Up to 10TB per HDD
• Backup methods: USB device, network download
• Playback channels: Up to 4 channels simultaneously

Network and Interface

• Network interface: 1 RJ-45 10M/100M adaptive Ethernet
• Maximum incoming bandwidth: 64 Mbps
• Maximum outgoing bandwidth: 64 Mbps
• Remote connections: Up to 128
• Protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

General Specifications

• Power supply: 12V DC
• Power consumption: ≤ 10W (without hard drive)
• Working temperature: -10°C to +55°C (14°F to 131°F)
• Working humidity: 10% to 90%
• Dimensions (W×D×H): 315 × 242 × 45mm (12.4″ × 9.5″ × 1.8″)
• Weight: Approximately 2kg (4.4lb) without hard drives
