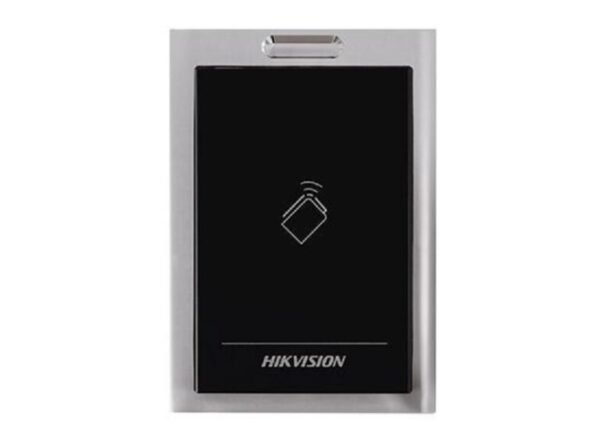

Hikvision DS-K1101M Keypad Mifare Card Reader

DS-K1101 Series Mifare Card Reader

The DS-K1101 Series card readers bring advanced access control technology to your security infrastructure. Available in two models – the DS-K1101M standard reader and the DS-K1101MK with integrated keypad – these devices combine durability with sophisticated features for seamless access management.

Professional-Grade Construction

The DS-K1101 Series features a PC+ABS material shell with PMMA panel design, creating a sleek yet durable housing. This construction not only provides an elegant appearance but also ensures longevity in various environments. Moreover, the IP64 protection rating guarantees dust-proof and water-proof performance, making the DS-K1101 Series suitable for both indoor and outdoor installations.

Advanced Processing Capabilities

At the core of the DS-K1101 Series is a powerful 32-bit high-speed processor that enables swift card reading and authentication. The system operates at a 13.56MHz reading frequency and can detect Mifare cards within a 50mm (1.97″) range. Additionally, the DS-K1101 Series consumes minimal power, requiring only 12V DC and drawing ≤500mA with power consumption of ≤2W.

Intelligent Security Features

The DS-K1101 Series incorporates several innovative security measures:

• Tamper-proof alarm system detects unauthorized tampering
• Built-in audible beeper provides audio feedback for successful operations
• LED indicators clearly display reader status and power information
• DIP switch for easy configuration of ID settings
• Dual communication protocol support with both RS485 and Wiegand (W26/W34)

Self-Healing Technology

The DS-K1101 Series includes a remarkable watchdog design that allows the reader to repair itself when exceptions occur. This self-diagnostic capability significantly extends the service life of the device while reducing maintenance requirements. Furthermore, the online upgrade function (under 485 communication mode) enables easy firmware updates, with a fail-safe mechanism that allows the reader to revert to pre-upgrade status if an update fails.

Model Comparison

The DS-K1101 Series offers two distinct models to meet different security requirements:

• DS-K1101M – Standard Mifare card reader for basic access control
• DS-K1101MK – Enhanced Mifare card reader with integrated 12-key keypad (0-9, *, #) for dual-factor authentication

Ideal Users

The DS-K1101 Series is particularly suitable for:

• Commercial building managers – The wide operating temperature range (-20°C to +65°C) makes the DS-K1101 Series ideal for various commercial environments, from heated office buildings to semi-outdoor locations.
• Security-conscious organizations – With tamper-proof alarms and self-diagnostic capabilities, the DS-K1101 Series provides enhanced security for sensitive areas.
• Sites requiring multi-factor authentication – The DS-K1101MK model combines card reading with keypad entry, enabling PIN+card authentication for higher security requirements.
• Harsh environment installations – Thanks to the IP64 protection rating and 10% to 90% humidity tolerance, the DS-K1101 Series performs reliably in challenging conditions.

Technical Specifications

Power Requirements

• Power Supply: 12V DC
• Working Current: ≤500mA
• Power Consumption: ≤2W

Performance

• Processor: 32-bit
• Reading Frequency: 13.56MHz
• Reading Range: ≤50mm (≤1.97″)
• ID Settings: via DIP Switch

Interface Features

• Audio Alert: Beeper
• LED Indicator: Power Indicator; Status LED Indicator
• Keypad: No Keypad (DS-K1101M); Keypad with 12 Keys (0 to 9, *, #) (DS-K1101MK)
• Communication: RS485 and Wiegand(W26/W34) protocol

Environmental Parameters

• Working Temperature: -20°C to +65°C (-4°F to +149°F)
• Working Humidity: 10% to 90% (Non Condensing)
• Protection Level: IP 64

Physical Attributes

• Dimensions: 132.0mm × 92.3mm × 20.5mm (5.20″ × 3.63″ × 0.81″)
• Weight: ≤0.14Kg
• Installing Method: Applied for 120 Gang Box Only

Certifications

• FCC, CE
