Hikvision DS-K1102AMK MIFARE Card Reader & Keypad

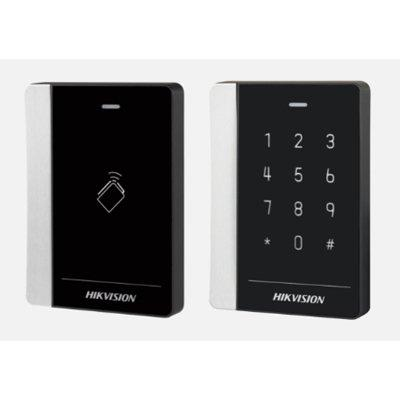

Hikvision DS-K1102A Card Reader

Compact and Versatile Access Control Solution

The Hikvision DS-K1102A Card Reader offers a sophisticated approach to access control with its sleek design and multiple authentication options. Consequently, it provides a robust solution for various security environments.

Key Technical Features

The card reader comes equipped with several advanced capabilities:

• Built-in audible beeper for immediate feedback
• Supports RS-485 and Wiegand (W26/W34) communication protocols
• Integrated tamper-proof alarm system
• Flexible card reading options across different frequencies

Ideal Users and Applications

This card reader would be particularly suitable for:

• Corporate office security systems
• Educational institutions
• Healthcare facilities
• Small to medium-sized businesses
• Residential complexes with access control needs

Why These Users Benefit

• Multiple model variants to suit different card technologies
• Extremely compact design (121 mm × 86.5 mm × 14 mm)
• Wide operating temperature range from -20°C to 65°C
• Low power consumption (≤ 2W)
• Lightweight and easy to install

Connectivity and Compatibility

Versatile communication options include:

• RS-485 protocol support
• Wiegand interface
• DIP switch for ID settings
• Compatible with 86 & 120 gang boxes

Environmental Adaptability

Engineered to perform in challenging conditions:

• Operates in humidity ranges from 10% to 90%
• Withstands extreme temperatures
• Designed for indoor and protected outdoor installations

Authentication Specifications

• Card Reading Frequencies:
  • 125 KHz (DS-K1102AE/AEK/AEM models)
  • 13.56 MHz (DS-K1102AM/AMK/AEMK models)

Physical Characteristics

• Dimensions: 121 mm × 86.5 mm × 14 mm
• Weight: ≤ 0.14 kg
• Power Supply: 12 VDC, 500 mA
• Power Consumption: ≤ 2 W

Keypad Options

• Keypad Models:
  • Some variants include 12-key keypad (0-9, *, #)
  • Other models available without keypad

Available Models

• DS-K1102AE
• DS-K1102AEK
