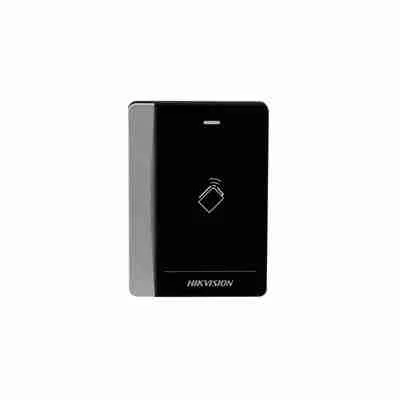

Hikvision DS-K1102E EM card reader

DS-K1102 Series Card Reader

The DS-K1102 Series Card Reader delivers robust access control capabilities in a compact, durable design. Engineered with dust-proof and water-resistant technology (IP64 rated), this reader integrates seamlessly into various security systems. The DS-K1102 Series supports both RS-485 and Wiegand (W26/W34) protocols, allowing for flexible deployment in diverse environments.

Advanced Card Reading Technology

The DS-K1102 Series features specialized card reading modules tailored to different security needs. The device is available in two main variants:

• DS-K1102E models incorporate a built-in 125 KHz EM card reading module that efficiently reads EM card numbers
• DS-K1102M models utilize a 13.56 MHz Mifare card reading module for reading Mifare card numbers, compliant with ISO 14443-A standards

Furthermore, each variant offers additional configuration options:

• Standard models (DS-K1102E/DS-K1102M) for basic card reading functionality
• Enhanced models with integrated keypads (DS-K1102EK/DS-K1102MK) for dual-factor authentication

Security-Focused Design Elements

The DS-K1102 Series prioritizes security through several key features:

• LED reader status indicator provides clear visual feedback of operational status
• Tamper-resistant alarm alerts security personnel to unauthorized access attempts
• DIP switch settings allow for customized ID configuration
• Audio alert system via built-in beeper for audible confirmation

Compact Yet Powerful Construction

Despite its slim profile measuring just 4.76″ × 3.41″ × 0.55″ (121 mm × 86.5 mm × 14 mm), the DS-K1102 Series delivers impressive performance:

• Powered by a 32-bit processor for rapid response
• Reading range of up to 1.97″ (50 mm) for convenient access
• Low power consumption of ≤2 W
• Standard U.S. single gang box installation for straightforward deployment

Ideal Users for the DS-K1102 Series

The DS-K1102 Series Card Reader is particularly well-suited for:

• Commercial office environments requiring reliable access control with minimal maintenance, benefiting from the IP64 protection level and wide operating temperature range (-4° to +149° F)
• Educational institutions needing versatile authentication options, with models offering both card-only and card+PIN verification through the integrated 12-key keypad
• Industrial facilities operating in challenging conditions, protected by the reader’s dust-proof and water-resistant design while maintaining consistent performance in humidity levels from 10% to 90%
• Residential complexes seeking streamlined security management, enabled by the reader’s compatibility with both RS-485 and Wiegand protocols for integration with various control panels

Technical Specifications

Processing & Performance

• Processor: 32-bit
• Power Consumption: ≤2 W
• Working Current: ≤500 mA
• Power Supply: 12 VDC

Card Reading Capabilities

• Reading Frequency: 125 KHz (DS-K1102E/EK models)
• Reading Range: ≤1.97″ (≤50 mm)
• ID Settings: DIP Switch
• Audio Alert: Beeper

Physical Characteristics

• Dimensions: 4.76″ × 3.41″ × 0.55″ (121 mm × 86.5 mm × 14 mm)
• Weight: ≤5.0 oz (≤0.14 kg)
• Installation Method: Standard U.S. single gang box
• Protection Level: IP64

Environmental Parameters

• Working Temperature: -4° to +149° F (-20° to +65° C)
• Working Humidity: 10% to 90% (non-condensing)

Interface & Indicators

• LED Indicator: Power indicator; status LED indicator
• Keypad: No keypad on base models; 12 keys (0-9, *, #) on EK/MK variants

Certifications

• CE, FCC, UL 60950-1

The DS-K1102 Series Card Reader combines advanced security features with practical design elements, making it an effective component in both new and existing access control systems./
