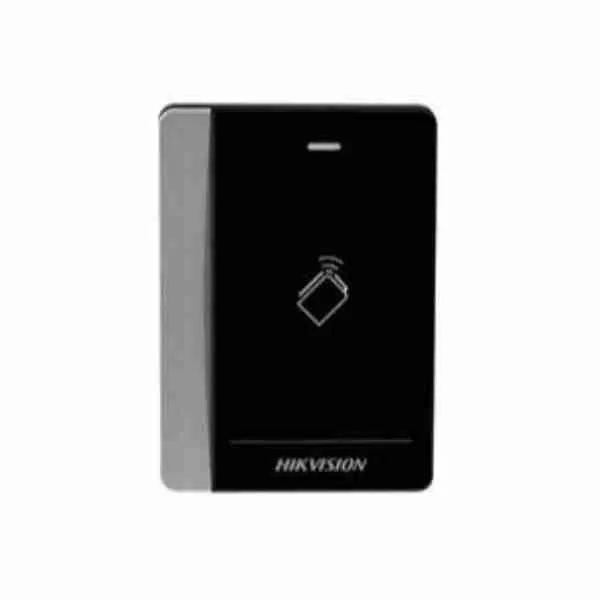

Hikvision DS-K1102M Mifare Reader

Hikvision DS-K1102 Series Card Reader

Innovative Access Control Solution

The Hikvision DS-K1102 Series represents a robust and versatile card reading solution designed for modern security infrastructure. Combining advanced technology with practical functionality, these card readers offer seamless access control for various environments.

Key Technologies

The DS-K1102 Series delivers exceptional performance through its sophisticated features:

• Dual-frequency card reading capabilities (125 KHz and 13.56 MHz)
• Compact and sleek design with multiple model variations
• Robust dust-proof and water-resistant construction
• Multiple communication protocol support

Intelligent Design and Connectivity

Moreover, the DS-K1102 Series integrates advanced communication protocols. Specifically, it supports RS-485 and Wiegand (W26/W34) interfaces, ensuring compatibility with diverse security systems. Additionally, the built-in DIP switch allows for flexible ID settings, providing customization options for different installation requirements.

Ideal Users

The DS-K1102 Series is perfectly suited for:

• Corporate office security managers seeking reliable access control
• Educational institutions requiring versatile entry management
• Healthcare facilities needing precise visitor tracking
• Small to medium-sized businesses with robust security needs

These users benefit from the DS-K1102’s compact design, multiple card reading options, and reliable performance.

Environmental Adaptability

Furthermore, the DS-K1102 Series demonstrates remarkable environmental resilience. With an operating temperature range from -4° to +149° F and humidity tolerance between 10% to 90% (non-condensing), these readers perform consistently across diverse conditions.

Product Specifications

Processor

• 32-bit processor
• High-speed performance

Card Reading

• Frequency: 125 KHz
• Reading Range: ≤1.97″ (≤50 mm)
• Supports EM and Mifare card technologies

Power Characteristics

• Power Consumption: ≤2 W
• Power Supply: 12 VDC
• Working Current: ≤500 mA

Physical Attributes

• Dimensions: 4.76″ × 3.41″ × 0.55″ (121 mm × 86.5 mm × 14 mm)
• Weight: ≤5.0 oz (≤0.14 Kg)
• Protection Level: IP64

Additional Features

• LED Status Indicator
• Audio Alert Beeper
• Tamper-Resistant Alarm
• Optional Keypad Models Available

Certifications

• FCC Certified
• CE Approved
• UL Listed

Available Models

• DS-K1102E: EM card reader
• DS-K1102EK: EM card reader with keypad
• DS-K1102M: Mifare card reader
• DS-K1102MK: Mifare card reader with keypad

Ultimately, the Hikvision DS-K1102 Series offers a comprehensive, flexible, and reliable access control solution for diverse security requirements.
