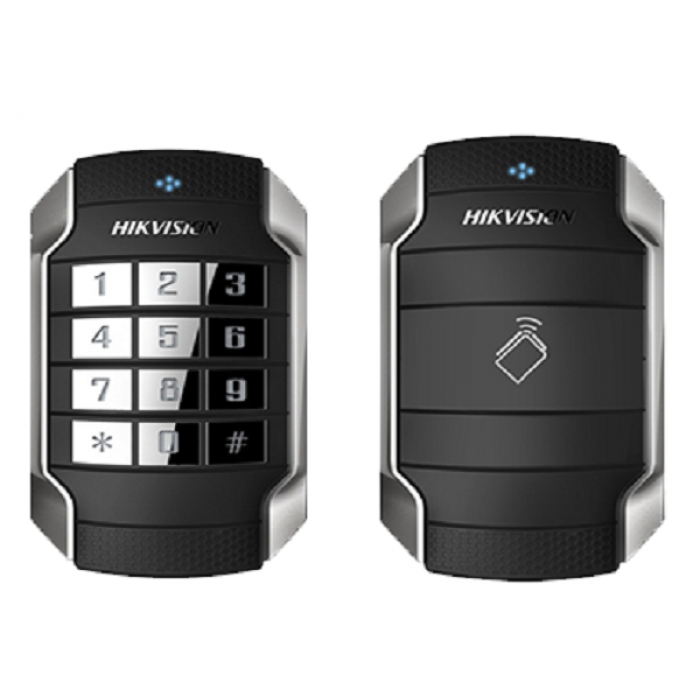

Hikvision DS-K1104MK Mifare Reader & Keypad

Dual Authentication Technology

The DS-K1104MK delivers multiple verification methods:

• Integrated Mifare card reader operating at 13.56 MHz frequency
• Built-in 12-key numeric keypad for PIN code entry
• Support for card-only, PIN-only, or card+PIN verification modes
• Configurable security levels based on time periods or areas
• Enhanced protection against unauthorized access attempts

Advanced Card Reading Capabilities

The DS-K1104MK features sophisticated credential processing:

• Compatible with ISO14443 Type A Mifare cards
• Supports reading of encrypted card data sectors
• Consistent reading distance of 2-6 cm (0.8-2.4 inches)
• Fast card recognition speed for efficient access flow
• Multiple format compatibility including standard and custom card formats

Tactile Keypad Interface

The DS-K1104MK includes a responsive input mechanism:

• 12-key numeric design (0-9, *, #) for flexible PIN configurations
• Backlit keys for visibility in low-light conditions
• Tactile feedback for confirmation of keypress
• Durable construction resistant to heavy usage
• Configurable timeout settings for enhanced security

Seamless System Integration

The DS-K1104MK connects effectively with broader security infrastructure:

• Compatible with Hikvision access controllers
• Standard Wiegand interface (26/34 bit) for third-party controller connection
• RS-485 half-duplex communication capability
• Selectable output formats to match existing systems
• Configurable transmission parameters for optimization

Robust Environmental Design

The DS-K1104MK withstands various installation conditions:

• Operating temperature range from -30°C to 60°C (-22°F to 140°F)
• IP65 weatherproof rating with appropriate installation
• Tamper-proof housing alerts on unauthorized removal attempts
• Humidity tolerance up to 90% (non-condensing)
• Suitable for indoor and sheltered outdoor locations

User-Friendly Operation

The DS-K1104MK ensures straightforward functionality:

• Tri-color LED indicators for clear status communication
• Built-in buzzer for audio operation feedback
• Configurable sound and light settings
• Intuitive card presentation area
• Simple PIN entry process with confirmation indicators

Enhanced Security Features

The DS-K1104MK prioritizes access protection:

• Encrypted data transmission between reader and controller
• Anti-passback capability when properly configured in system
• Duress code functionality for emergency situations
• Configurable failed attempt lockout
• Secure key management for credential protection

Ideal For These Users

• Financial Institutions – The dual-verification method with both Mifare card and PIN code provides the enhanced security required for bank branches and restricted areas where assets need maximum protection
• Research Facilities – The DS-K1104MK offers configurable security levels suitable for laboratories with differing access requirements based on sensitivity of research areas
• IT Data Centers – The multiple authentication modes ensure compliance with security standards for server rooms and network infrastructure
• Pharmaceutical Companies – The tamper-proof design and encrypted communication protect sensitive production and storage areas from unauthorized access

Technical Specifications

Card & Keypad Features

• Reading Frequency: 13.56 MHz
• Card Type: Mifare (ISO14443 Type A)
• Reading Distance: 2-6 cm (0.8-2.4 inches)
• Key Layout: 12-key numeric (0-9, *, #)
• Key Material: Durable plastic with backlight
• PIN Length: Configurable, 4-8 digits

Communication Interface

• Wiegand Output: 26/34 bit Wiegand protocol
• RS-485: Half-duplex with standard protocol
• Data Transmission Rate: 9600 bps
• Cable Distance: Up to 100m (Wiegand), 1200m (RS-485)
• Address Range: 1-64 (RS-485 mode)

Electrical Parameters

• Operating Voltage: DC 9-16V
• Current Consumption: ≤150 mA
• Static Current: ≤50 mA
• Power Consumption: ≤2.4W
• Protection: Over-voltage and reverse polarity protection

Physical Characteristics

• Dimensions: 102 × 102 × 33 mm (4.0 × 4.0 × 1.3 inches)
• Material: PC+ABS plastic housing
• Mounting: Surface mount
• Indicator: Tri-color LED (red/green/blue)
• Audio Signal: Built-in buzzer
• Weight: Approximately 120g (0.26 lb)

Environmental

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Protection Level: IP65 (with proper installation)
• Environment: Indoor/Outdoor (sheltered)
• Mean Time Between Failures: >50,000 hours

Authentication Modes

• Card Only: Standard card presentation
• PIN Only: Keypad code entry
• Card + PIN: Dual verification required
• Schedule-Based: Configurable by time and day
• Anti-passback: Supports when connected to compatible controller

Certifications

• CE Compliance
• FCC Certification
• RoHS Conformity
• UL Certification
• Safety: IEC 60950-1

Package Contents

• DS-K1104MK Mifare Reader & Keypad
• Mounting Screws and Anchors
• Installation Guide
• Mounting Template
