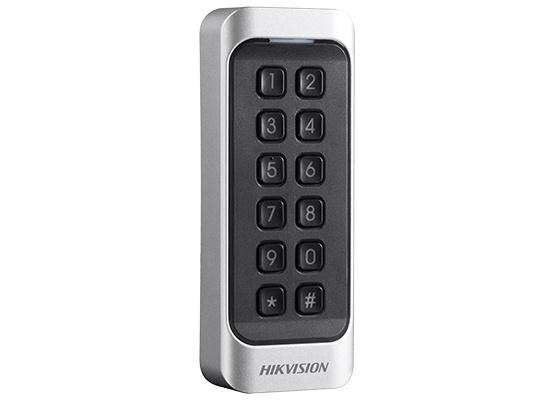

Hikvision DS-K1107MK Mifare Reader & Keypad

Dual Authentication Technology

The DS-K1107MK provides comprehensive verification methods:

• Integrated Mifare card reader operating at 13.56 MHz frequency
• Robust metal keypad with 12 numeric and function keys
• Support for card-only, PIN-only, or card+PIN verification modes
• Configurable security levels based on access requirements
• Programmable authentication schedules for time-based security policies

Advanced Mifare Card Technology

The DS-K1107MK incorporates sophisticated card reading capabilities:

• Compatible with ISO14443 Type A Mifare cards and tags
• Supports reading of encrypted card data sectors
• Consistent reading distance of 2-6 cm (0.8-2.4 inches)
• Fast credential processing for smooth access flow
• Multiple card format compatibility including standard and custom formats

Vandal-Resistant Construction

The DS-K1107MK features durable physical design elements:

• Metal frame and housing for enhanced durability
• Zinc alloy or stainless steel keypad resistant to tampering
• IK08 impact protection rating against physical attacks
• Concealed mounting hardware to prevent unauthorized removal
• Anti-vandal design suitable for exposed installation locations

Water and Dust Protection

The DS-K1107MK maintains performance in challenging environments:

• IP65 weatherproof rating for reliable outdoor operation
• Sealed design prevents water ingress during rain or cleaning
• Dust-tight construction protects internal electronics
• Reliable performance in humid or dusty conditions
• UV-resistant materials prevent degradation from sun exposure

Versatile Integration Options

The DS-K1107MK connects effectively with broader security systems:

• Compatible with Hikvision access controllers
• Standard Wiegand interface (26/34 bit) for third-party controller connection
• RS-485 half-duplex communication capability for extended distances
• Selectable output formats to match existing infrastructure
• Address configuration options for multi-device installations

Enhanced User Experience

The DS-K1107MK ensures intuitive operation:

• Backlit keypad for clear visibility in low-light environments
• Multi-color LED indicators for clear status communication
• Tactile feedback from metal keys for confirmation of input
• Configurable audio feedback with built-in buzzer
• Simplified enrollment and management through Hikvision platforms

Advanced Security Features

The DS-K1107MK prioritizes credential protection:

• Encrypted data transmission between reader and controller
• Tamper detection alerts for unauthorized removal attempts
• Duress code capability for emergency situations
• Failed attempt lockout configuration options
• Anti-passback support when configured with compatible controllers

Ideal For These Users

• High-Security Facilities – The metal construction and dual-factor authentication provide enhanced protection for government buildings, military installations, and critical infrastructure where vandal resistance and multiple verification methods are essential
• Outdoor Commercial Environments – The IP65 rating and IK08 impact protection ensure reliable performance in exposed outdoor locations such as parking garages, industrial gates, and loading docks
• Financial Institutions – The combination of card and PIN verification meets security protocols for restricted areas in banks, credit unions, and financial service centers
• Healthcare Controlled Areas – The multi-factor authentication protects pharmaceutical storage, research laboratories, and sensitive medical record rooms from unauthorized access

Technical Specifications

Card & Keypad Features

• Reading Frequency: 13.56 MHz
• Card Type: Mifare (ISO14443 Type A)
• Reading Distance: 2-6 cm (0.8-2.4 inches)
• Key Layout: 12-key numeric and function keys
• Key Material: Metal (zinc alloy or stainless steel)
• PIN Length: Configurable, 4-8 digits

Communication Interface

• Wiegand Output: 26/34 bit Wiegand protocol
• RS-485: Half-duplex with standard protocol
• Data Transmission Rate: 9600 bps
• Cable Distance: Up to 100m (Wiegand), 1200m (RS-485)
• Address Range: 1-64 (RS-485 mode)

Physical Durability

• Vandal Resistance: IK08 impact protection
• Waterproof Rating: IP65
• Housing Material: Metal alloy
• Keypad Type: Metal, backlit
• Tamper Protection: Built-in tamper switch

Electrical Parameters

• Operating Voltage: DC 9-16V
• Current Consumption: ≤150 mA
• Static Current: ≤50 mA
• Power Consumption: ≤2.4W
• Protection: Over-voltage and reverse polarity protection

Physical Characteristics

• Dimensions: 120 × 76 × 22 mm (4.7 × 3.0 × 0.9 inches)
• Mounting: Surface mount
• Indicator: Multi-color LED
• Audio Signal: Built-in buzzer
• Weight: Approximately 350g (0.77 lb)

Environmental

• Operating Temperature: -30°C to 65°C (-22°F to 149°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Environment: Indoor/Outdoor
• Mean Time Between Failures: >50,000 hours
• UV Protection: Yes

Authentication Modes

• Card Only: Standard card presentation
• PIN Only: Keypad code entry
• Card + PIN: Dual verification required
• Schedule-Based: Configurable by time and day
• Duress Password: Optional emergency code

Certifications

• CE Compliance
• FCC Certification
• RoHS Conformity
• UL Certification
• Safety: IEC 60950-1

Package Contents

• DS-K1107MK Mifare Reader & Keypad
• Mounting Screws and Special Tools
• Installation Guide
• Mounting Template
• Security Torx Screwdriver
