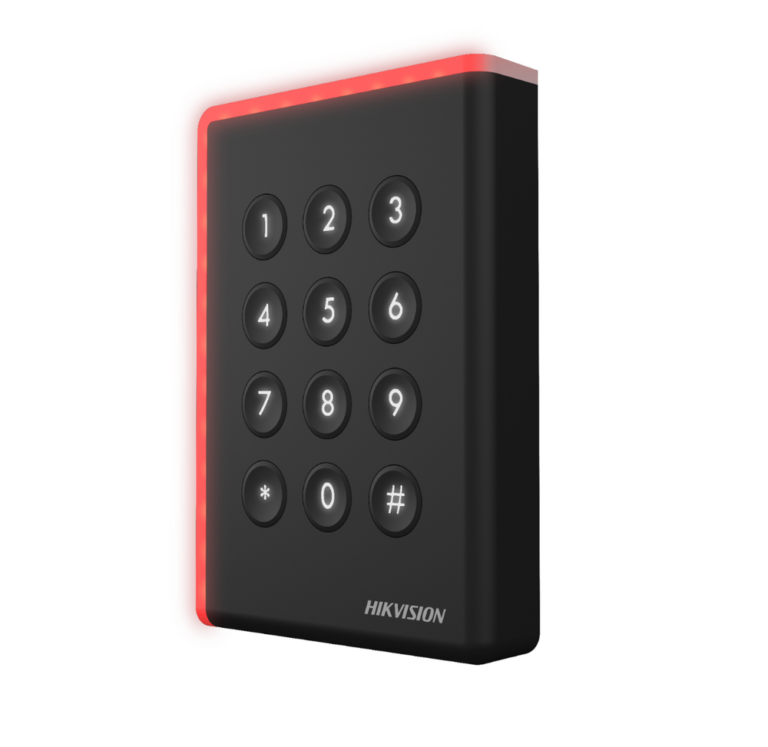

Hikvision DS-K1108AMK Mifare Card Reader

DS-K1108AMK Card Reader

Advanced Security Authentication Device

The DS-K1108AMK Card Reader delivers robust access control capabilities powered by a 32-bit high-speed processor. This compact device offers versatile connectivity through multiple communication protocols including RS-485, Wiegand (W26, W34), and OSDP.

Multi-Card Technology Support

The DS-K1108AMK Card Reader series provides exceptional flexibility with varied frequency support across different models:

• DS-K1108AE/DS-K1108AEK models read EM cards operating at 125 KHz frequency
• DS-K1108AM/DS-K1108AMK models support Mifare cards at 13.56 MHz, meeting ISO 14443-A standards
• DS-K1108AD/DS-K1108ADK models offer expanded compatibility with Mifare, Desfire, and Felica cards

Enhanced Security Features

Security remains paramount with the DS-K1108AMK Card Reader. The device incorporates tamper-proof functionality to prevent unauthorized access attempts. Additionally, the built-in buzzer provides clear status indications during operation. The DS-K1108AMK maintains precise timing through its built-in electronic clock and watchdog program, ensuring reliable authentication services.

Furthermore, the DS-K1108AMK supports online upgrading capabilities, allowing system administrators to easily update firmware and maintain the latest security protocols without hardware replacement.

Ideal For These Users

• High-security facilities – The tamper-proof function and multiple card format support make the DS-K1108AMK perfect for sensitive areas requiring strict access control
• Outdoor installations – With IP65 protection rating, the device withstands harsh weather conditions from -20°C to 65°C
• Multi-site enterprise deployments – ID settings via DIP switch enable easy configuration across multiple locations
• Facilities with mixed credential technologies – Support for various card types (EM, Mifare, Desfire, Felica) allows gradual migration between technologies

Model Variations

The DS-K1108AMK series offers multiple configurations to meet diverse needs:

• Standard models without keypads: DS-K1108AE, DS-K1108AM, DS-K1108AD
• Enhanced security models with keypads: DS-K1108AEK, DS-K1108AMK, DS-K1108ADK

System Specifications

• Processor: 32-bit
• Audio alert: Beeper
• Card reading distance: ≤ 50 mm (1.97″)
• Card radio frequency standard: ISO 14443-A

Network Capabilities

• Communication protocol: RS-485/Wiegand (Set via DIP switch)
• ID settings: via DIP switch

Physical Characteristics

• Dimensions: 123 mm × 88 mm × 21mm (4.84″ × 3.46″ × 0.83″)
• Protective level: IP65
• Installation: Wall mounting
• Keypad: Available on DS-K1108AEK, DS-K1108AMK, and DS-K1108ADK models
• Indicators: Power indicator; Status LED indicator

Power Requirements

• Power supply: 12 VDC, 2 W

Environmental Parameters

• Working temperature: -20°C to 65°C (-4°F to 149°F)
• Working humidity: 10% to 90% (Non-condensing)

Certifications

• Approval: FCC, CE

The DS-K1108AMK Card Reader balances security, versatility, and durability to provide reliable access control in various environments. Its compact form factor coupled with comprehensive card technology support makes the DS-K1108AMK an excellent choice for both new installations and system upgrades.
