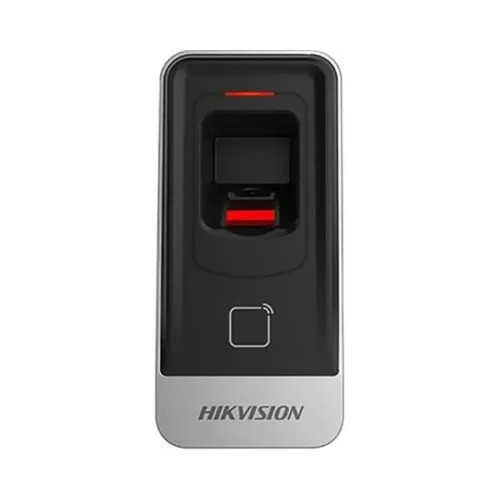

Hikvision DS-K1201MF Fingerprint Card Reader

Advanced Security Authentication System

The DS-K1201MF Fingerprint Card Reader represents cutting-edge access control technology powered by a 32-bit high-speed processor. This sophisticated device offers multiple authentication modes including card-only, fingerprint-only, and card plus fingerprint verification. The DS-K1201MF seamlessly integrates with access controllers through the reliable RS-485 protocol operating at 19,200 bps.

Furthermore, the reader features an impressive fingerprint storage capacity of 5,000 fingerprints, making it suitable for medium to large installations. The device maintains exceptional biometric performance with a False Acceptance Rate (FAR) of ≤0.001% and a False Rejection Rate (FRR) of ≤0.01%. This balance ensures both security and user convenience.

Robust Design for All Environments

The DS-K1201MF includes several key design elements that enhance its reliability:

• Built-in tamper-resistant module protects against malicious damage
• IP65 protection level enables outdoor installation
• Operates in extreme temperatures from -40°C to +70°C
• Functions in humidity levels from 10% to 90% (non-condensing)
• Compact dimensions of 62 mm × 132 mm × 44 mm

The physical design also features LED indicators for power and communication status, along with audible feedback through an integrated buzzer. Additionally, the DS-K1201MF mounts easily via a standard U.S. single gang box, simplifying installation and maintenance.

Integration Capabilities

The DS-K1201MF works cooperatively with Hikvision’s DS-K1F820-F Fingerprint Recorder, creating a comprehensive security ecosystem. The reader supports Mifare card technology with an induction distance ranging from 30mm to 100mm. Moreover, the comparison speed is impressive, requiring ≤1 second for 1:1 verification and ≤1.5 seconds for 1:3000 verification in 1:N mode.

Ideal Users

The DS-K1201MF is particularly well-suited for:

• Commercial buildings requiring multi-factor authentication – leverages both fingerprint and card verification for enhanced security
• Outdoor security installations – benefits from the IP65 rating and wide temperature tolerance (-40°C to +70°C)
• Facilities with medium to large user bases – accommodates up to 5,000 unique fingerprints
• High-security areas – utilizes the extremely low false acceptance rate of ≤0.001%
• Environments requiring tamper protection – includes dedicated tampering alarm system

Technical Specifications

Processing & Performance

• Processor: 32-bit high-performance processor
• FP Module: Optional FP module
• FP Capacity: 5000 fingerprints
• FAR: ≤0.001%
• FRR: ≤0.01%
• Comparison Mode: 1:1/1:N
• Comparison Time: 1:1, ≤1s; 1:3000, ≤1.5s

Communication

• Reading Mode: Mifare card
• Communication Mode: RS-485
• Transmission Rate: 19,200 bps-N-8-1
• Induction Distance: 30mm-100 mm (1.18″-3.94″)

Physical & Environmental

• Power Supply: 12 VDC ±10%
• Working Temperature: -40° to 158° F (-40° to +70° C)
• Working Humidity: 10% to 90% (non-condensing)
• Dimension: 2.44″ × 5.20″ × 1.73″ (62 mm × 132 mm × 44 mm)
• Protection Level: IP65
• Mounting Method: Standard U.S. single gang box

Indicators & Alarms

• LED Indicator: Power/communication
• Prompt: Buzzer
• Alarm: Tampering alarm x 1

Certifications

• CE, FCC, UL 60950-1
