Hikvision DS-K1T342MFX Value Series Face Access Terminal

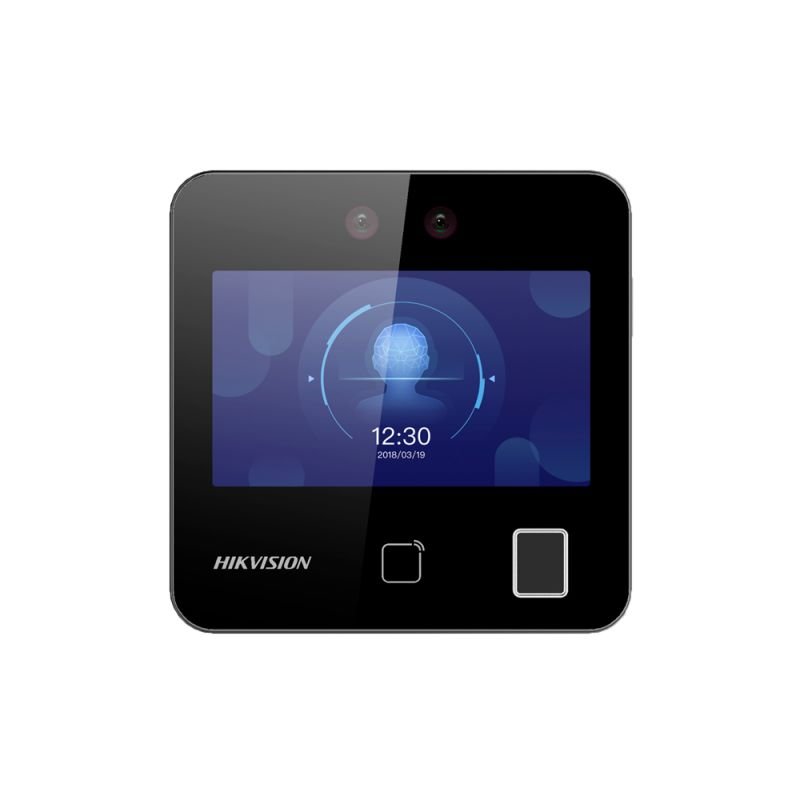

DS-K1T342MFX Face Recognition Terminal

The DS-K1T342MFX Face Recognition Terminal represents advanced security access technology powered by deep learning algorithms. This versatile authentication device delivers exceptional recognition speed and accuracy while supporting multiple verification methods.

Advanced Recognition Technology

The DS-K1T342MFX employs sophisticated deep learning algorithms to process facial data with remarkable efficiency. As a result, the terminal achieves:

• Recognition distance of 0.3 m to 1.5 m
• Authentication duration under 0.2 seconds per user
• Accuracy rate of ≥99%
• Effective mask recognition capability
• Built-in face anti-spoofing technology

Furthermore, the terminal can store up to 1,500 face templates, 3,000 fingerprint records, and 3,000 card credentials. This substantial capacity makes the DS-K1T342MFX suitable for medium-sized organizations with significant user populations.

Versatile Hardware Configuration

The DS-K1T342MFX features a user-friendly 4.3-inch LCD capacitive touch screen interface. Additionally, the terminal is equipped with:

• 2-megapixel wide-angle lens for superior image capture
• Built-in M1 card reading module (13.56 MHz frequency)
• Noise suppression and echo cancellation for clear audio
• Two-way audio communication capabilities

Comprehensive Connectivity Options

The DS-K1T342MFX offers extensive integration possibilities through multiple interfaces:

• 1 RJ-45 network port (10/100M self-adaptive)
• 1 RS-485 connection (Half duplex, HIKVISION)
• 1 Wiegand port (Hik 26bit, Hik 34bit)
• 1 USB port
• Lock control, exit button, and door contact input connections
• TAMPER interface for security monitoring

The terminal supports TCP/IP networking and can be configured via web client. For system integration, the DS-K1T342MFX is compatible with ISAPI and ISUP5.0 protocols, as well as Hik-ProConnect and HikCentral Professional platforms.

Environmental Adaptability

The DS-K1T342MFX demonstrates impressive operational resilience with:

• Wide operating temperature range: -30°C to 60°C (-22°F to 140°F)
• Working humidity tolerance: 0 to 90% (non-condensing)
• Compact dimensions: 91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
• Wall mounting installation option

Ideal Users for the DS-K1T342MFX

• Mid-sized enterprises: The 3,000-card capacity and 1,500-face storage make this terminal perfect for organizations with hundreds of employees requiring secure access.
• Multi-language environments: With support for 8 languages including English, Spanish, Arabic, and more, this terminal suits international organizations.
• High-security facilities: The 99% accuracy rate and anti-spoofing technology provide reliable security for sensitive locations.
• Installations in extreme environments: The wide temperature range (-30°C to 60°C) allows deployment in varied climate conditions.
• Multi-authentication scenarios: Organizations requiring layered security can utilize the combination of face, fingerprint, and card verification methods.

Technical Specifications

Display

• Screen size: 4.3 inch
• Operation method: Capacitive touch screen
• Type: LCD

Video

• Lens: 2
• Resolution: 2 MP

Audio

• Audio quality: Noise suppression and echo cancellation

Network

• Wired network: Support

Interface

• Network interface: 1 RJ-45, 10/100 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1
• RS-485: 1 RS-485 (Half duplex, HIKVISION)
• Wiegand: 1 Wiegand (Hik 26bit, Hik 34bit)
• USB: 1

Authentication

• Card type: M1 card
• Card reading frequency: 13.56 MHz

General

• Power supply: 12 VDC, 1 A (power adapter included)
• Working temperature: -30°C to 60°C (-22°F to 140°F)
• Working humidity: 0 to 90% (No condensing)
• Dimensions: 91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
• Installation: Wall Mounting
• Weight:
  • Gross weight: 0.93 kg (2.05 lb)
  • Net weight: 0.36 kg (0.79 lb)

Language

• English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

Platform

• Hik-ProConnect and HikCentral Professional

Function

• Face anti-spoofing: Support
• Audio prompt
• Time synchronization

Optional Accessories

• DS-KAB6-ZU1: Brackets for face terminals
• DS-KAB671-P2: Stand Stick
• DS-KAB34X-S1: Protective Shield
• DS-KAB6-W1: Bracket
