Hikvision DS-K1T607MW Face Recognition Terminal MiFare Reader

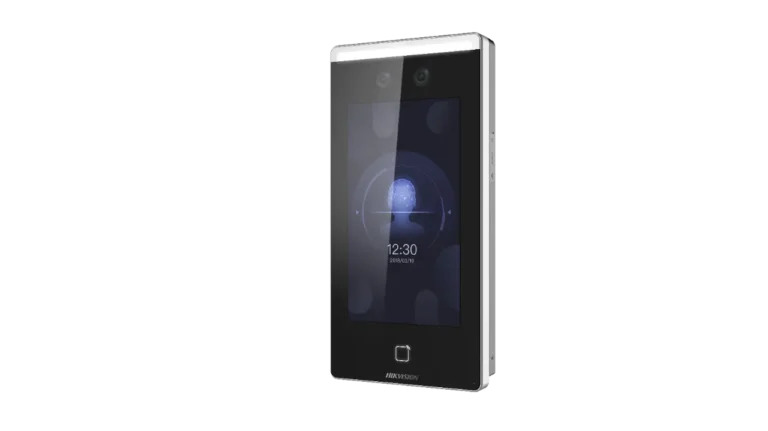

DS-K1T607MW Series Face Recognition Terminal

The DS-K1T607MW series face recognition terminal represents advanced access control technology with multi-authentication capabilities. This powerful device features a sleek design with a large screen ratio, making interaction intuitive and efficient. The terminal leverages deep learning algorithms to deliver exceptional facial recognition performance in various lighting conditions.

Advanced Recognition Technology

The DS-K1T607MW utilizes a 2 MP wide-angle dual-lens camera system with IR supplement light and WDR technology. This combination enables:

• Face recognition in dark environments with manually adjustable supplement light
• Recognition distance of 0.3 to 1.5 meters
• Recognition duration under 0.5 seconds per person
• Accuracy rate ≥ 99%
• Optimal performance for individuals between 1.4 m and 1.9 m in height

Multi-Authentication Flexibility

The DS-K1T607MW series provides comprehensive authentication options to meet diverse security requirements:

• Face recognition supporting both 1:1 and 1:N matching
• Card authentication with 0 to 3 cm reading distance
• Fingerprint recognition in selected models (DS-K1T607EF and DS-K1T607MFW)
• Multiple authentication modes for enhanced security

Furthermore, the DS-K1T607MW offers substantial storage capacity, holding up to:

• 6,000 face templates
• 5,000 fingerprint templates (on supported models)
• 6,000 cards
• 10,000 event records

Seamless Connectivity

The terminal features comprehensive connectivity options to integrate with existing security infrastructures:

• 10/100/1000 Mbps self-adaptive network interface
• Wi-Fi support in MW and MFW models
• RS-485 connectivity for external card readers or access controllers
• Wiegand protocol support
• Secure door control unit connection to prevent unauthorized access

Additionally, the DS-K1T607 supports two-way audio with client software, indoor station, and master station, allowing for effective communication. Remote live view is available via RTSP protocol with H.264 encoding.

User-Friendly Interface

Interaction with the DS-K1T607MW is straightforward through its:

• 7-inch LCD touch screen with 1024 × 600 resolution and 16:9 ratio
• Audio prompts for operation guidance
• Local device management for data configuration and search

Robust Security Features

The terminal incorporates several security measures:

• Tamper detection functionality
• Watchdog design for system reliability
• IP65 protection level for durability in various environments
• Anti-spoofing technology (Note: For highest security environments, multiple authentication modes are recommended)

Suitable User Profiles

The DS-K1T607MW series is particularly well-suited for:

• Enterprise security managers requiring high-volume access control (handles up to 6,000 users)
• Government facilities needing multi-factor authentication (combines face, card, and fingerprint verification)
• Commercial buildings requiring reliable 24/7 operation (operates in temperatures from -30°C to 60°C)
• Organizations managing sensitive areas needing enhanced security (99% face recognition accuracy with tamper detection)

Available Model

• DS-K1T607MW: Wireless model with M1 card and Wi-Fi support

Technical Specifications

Operating System

• Linux

Display

• 7-inch touch screen
• 16:9 ratio
• 1024 × 600 resolution

Camera System

• 2 MP dual-lens camera
• IR supplement light
• WDR technology

Recognition Performance

• Face recognition duration: < 0.5 s per person
• Face recognition distance: 0.3 to 1.5 m
• Card swiping duration: < 1 s
• Card swiping distance: 0 to 3 cm

Storage Capacity

• Face capacity: 6,000
• Fingerprint capacity: 5,000 (EF and MFW models)
• Card capacity: 6,000
• Event capacity: 10,000

Connectivity

• Network: 10/100/1000 Mbps self-adaptive
• Wi-Fi: Supported in MW and MFW models
• Interfaces: Network × 1, RS-485 × 1, Wiegand × 1, USB × 1, alarm output × 1, alarm input × 2, lock ×1, door contact × 1, exit button × 1, tamper × 1

Power Requirements

• Working voltage: 12 VDC/3 A

Environmental

• Working temperature: -30°C to 60°C (-22°F to 140°F)
• Working humidity: 0 to 90% (No condensing)
• Protection level: IP65

Physical Dimensions

• With fingerprint module: 116.5 × 290 × 33 mm
• Without fingerprint module: 116.5 × 239 × 33 mm

Installation Notes

• Avoid direct sunlight, low ventilation, or heat sources
• For models with fingerprint modules, indoor installation is recommended
