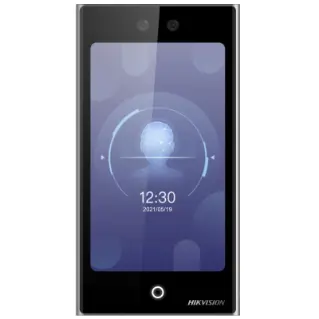

Hikvision DS-K1T673DX Face Recognition Terminal

DS-K1T673DX Face Recognition Terminal

The DS-K1T673DX combines advanced facial recognition technology with versatile access control capabilities in a sleek, durable design. This multi-functional terminal offers expanded storage capacity and comprehensive connectivity options for diverse security applications.

Advanced Recognition Technology

The DS-K1T673DX utilizes high-performance facial recognition algorithms with remarkable specifications:

• Face recognition distance ranging from 0.3 to 3 meters for flexible deployment
• Recognition speed of less than 0.2 seconds per user for efficient processing
• Accuracy rate of 99% or higher for reliable identification
• Support for both single person and multiple people recognition (up to 5 individuals)
• Face mask detection capabilities for health compliance monitoring
• Advanced anti-spoofing technology to prevent unauthorized access attempts

Furthermore, the terminal features a 7-inch IPS touch screen with 600 × 1024 resolution, providing an intuitive interface for both users and administrators.

Multi-Authentication Options

The DS-K1T673DX offers flexible verification methods to accommodate various security requirements:

• Facial recognition with 10,000 face template capacity
• Card reading (M1, DESfire, and Felica cards) with 50,000 card capacity
• Fingerprint scanning with 10,000 template storage (with optional fingerprint module)
• Multi-factor authentication support for enhanced security

This versatility allows organizations to implement appropriate authentication protocols based on specific security needs and user preferences.

Comprehensive Connectivity

The terminal provides extensive integration capabilities through numerous interfaces:

• 1 RJ-45 network interface supporting 10/100/1000 Mbps self-adaptive connection
• 1 Wiegand interface (Hik 26bit, Hik 34bit) for reader connectivity
• 1 RS-485 port (Half duplex, HIKVISION) for peripheral communication
• 1 lock control output for door activation
• 1 exit button input for egress control
• 1 door contact input for status monitoring
• 2 alarm inputs and 1 alarm output for security integration
• 1 tamper input for device protection
• 1 USB port for module expansion
• 1 audio output interface (3.5 mm) for external speaker connection

Additionally, the DS-K1T673DX supports various network protocols including IPv4 (SADP, SIP, RTSP, ISAPI, ISUP 5.0) and IPv6 (RTSP, ISAPI) for flexible system integration.

Robust Design and Performance

The DS-K1T673DX is engineered for reliability in various environments:

• IP65 protection rating for dust and water resistance
• Operating temperature range from -30°C to 60°C (-22°F to 140°F)
• Humidity tolerance from 0 to 90% (non-condensing)
• Compact dimensions: 110.5 mm × 209.2 mm × 24 mm
• Lightweight construction: 0.57 kg net weight

These specifications ensure the terminal remains functional in challenging conditions, from outdoor installations to industrial environments.

Enhanced Security Features

The DS-K1T673DX includes advanced security functions:

• Wide dynamic range support for balanced imaging in varying lighting conditions
• Night vision capabilities with IR supplement lights for 24/7 operation
• Anti-passback functionality to prevent unauthorized entry sharing
• First person in support for controlled access scheduling
• 150,000 event storage capacity for comprehensive audit trails
• Built-in omnidirectional microphone for clear audio communication
• Two-way audio support for visitor interaction

Additionally, the system supports time synchronization and audio prompts for enhanced user experience.

Ideal Users

• Large Enterprise Security Teams: The DS-K1T673DX’s high-capacity storage (10,000 faces, 50,000 cards) and multiple authentication methods make it perfect for organizations with extensive user databases requiring secure access control.
• Educational Institutions: With support for recognizing up to 5 people simultaneously and face mask detection capabilities, this terminal efficiently manages high-traffic entry points in schools and universities.
• Multi-Tenant Commercial Buildings: The extensive connectivity options and flexible authentication methods accommodate diverse tenant requirements while maintaining centralized security management.
• International Organizations: With support for 12 languages including English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese, Japanese, Korean, Traditional Chinese, French, and Turkish, the DS-K1T673DX is suitable for global deployments.

Technical Specifications

System

• Operating system: Linux
• ROM: 4 GB
• RAM: 1 GB

Display

• Screen size: 7 inch
• Operation method: Capacitive touch screen
• Type: IPS
• Resolution: 600 × 1024

Video

• Lens: 2
• Resolution: 2 MP
• FOV: HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
• Wide Dynamic Range (WDR): Support
• Video standard: PAL (Default)/NTSC
• Focal length: 4 mm
• Aperture: F 1.1

Audio

• Audio compression standard: G.711U
• Audio compression bitrate: 64 Kbps
• Audio quality: Built-in omnidirectional microphone
• Volume adjustment: Support
• Power output: 1.5 W

Network

• Network protocol: IPv4: SADP, SIP, RTSP, ISAPI, ISUP 5.0; IPv6: RTSP, ISAPI
• Wired network: Support

Interface

• Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• Alarm input: 2
• Alarm output: 1
• TAMPER: 1
• RS-485: 1 RS-485 (Half duplex, HIKVISION)
• Wiegand: 1 Wiegand (Hik 26bit, Hik 34bit)
• USB: 1 (For Module)
• Audio output interface: 1 (3.5 mm)

Capacity

• Face capacity: 10,000
• Card capacity: 50,000
• Event capacity: 150,000
• Fingerprint capacity: 10,000 (With fingerprint module)

Authentication

• Face recognition distance: 0.3 to 3 m
• Face recognition accuracy rate: ≥ 99%
• Face recognition duration: < 0.2 s per person
• Card type: M1 card, DESfire card, Felica card
• Card reading distance: 0 to 3 cm
• Card reading duration: < 1 s

General

• Power supply: 12 VDC to 24 VDC, 2 A
• Working temperature: -30°C to 60°C (-22°F to 140°F)
• Working humidity: 0 to 90% (no condensing)
• Protective level: IP 65
• Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
• Weight: Gross Weight: 1.06 kg (2.34 lb); Net Weight: 0.57 kg (1.26 lb)

Function

• Advertisement: Support
• Live view: Support
• Two-way audio: Support
• Multi-factor authentication: Support
• M1 card encryption: Support
• Face anti-spoofing: Support
• Anti-passback: Support
• First person in: Support
• Audio prompt: Support
• Time synchronization: Support
