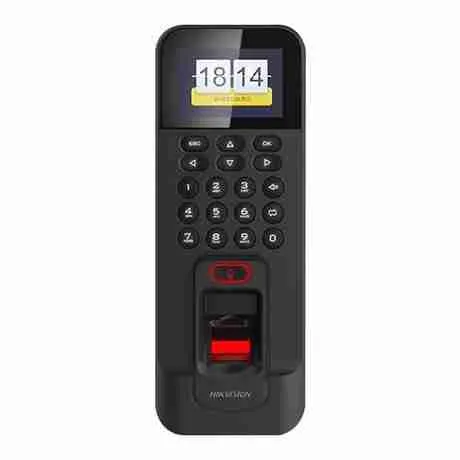

Hikvision DS-K1T904AMF Fingerprint Access Control Terminal

Key Features and Capabilities

The DS-K1T804AMF stands out with its multi-authentication approach. Consequently, users can access secured areas through multiple methods, including fingerprint scanning and Mifare card authentication. The device’s optical fingerprint module ensures rapid and accurate identification, with recognition taking less than one second.

Ideal Users and Use Cases

This access control terminal is perfectly suited for:

• Corporate offices requiring multi-factor authentication
• Educational institutions needing secure entry management
• Small to medium-sized businesses seeking advanced security solutions
• Facilities with strict access control requirements

Why it works exceptionally well:

• Supports 3,000 unique fingerprints and cards
• Stores up to 100,000 event logs for comprehensive tracking
• Flexible communication interfaces (TCP/IP, Wi-Fi, RS-485)
• Quick authentication process (< 1 second for both card and fingerprint)

Technical Advantages

The DS-K1T804AMF delivers exceptional performance through its innovative design. Furthermore, its compact form factor (205 mm × 76.5 mm × 37 mm) allows for easy surface mounting in various locations.

Connectivity is a standout feature. Consequently, the terminal supports multiple interfaces, including:

• Network interface
• RS-485
• Wiegand
• Lock control
• USB

Display and Interaction

Equipped with a 2.4-inch LCD-TFT display screen (320 × 240 resolution), the terminal provides clear visual feedback. Additionally, it features both a loudspeaker and buzzer for audio notifications.

Operational Flexibility

The device demonstrates remarkable adaptability across different environments. Specifically, it operates effectively in temperatures ranging from -10°C to +55°C and humidity levels between 10% to 90% without condensation.

Display Specifications

• Screen Size: 2.4-inch
• Resolution: 320 × 240
• Type: LCD-TFT display screen

Network Specifications

• Wired Network: TCP/IP, 10/100Mbps, self-adaptive
• Wi-Fi: Supported

Authentication Capabilities

• Card Type: Mifare 1 card
• Card Reading Distance: 0 to 4.5 cm
• Fingerprint Module: Optical fingerprint module
• Comparing Modes: 1:1 and 1:N

General Specifications

• Power Supply: 12 VDC/1 A
• Color Options: Black (included), Gold, Silver, White
• Installation: Surface mounting

Available Model

DS-K1T804AMF
