Hikvision DS-K2601 Pro Complete Access Network Controller

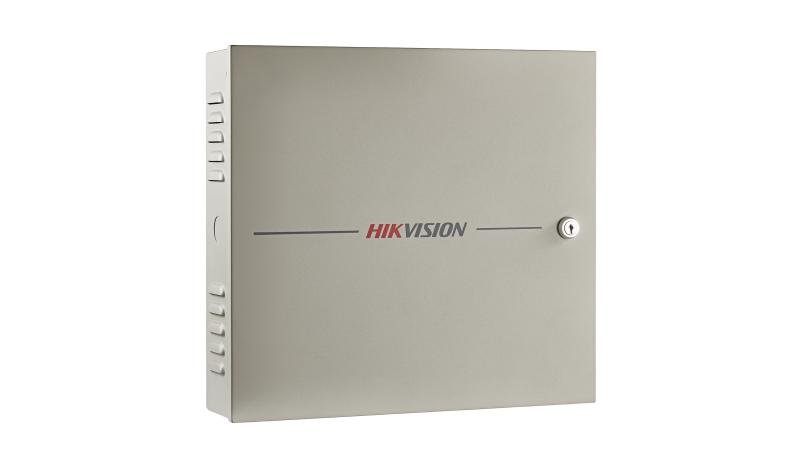

DS-K2600-G Series Access Controller

The DS-K2600-G series access controller delivers enterprise-grade security with advanced communication capabilities. This powerful device features both network and RS-485 interfaces, supporting TCP/IP and RS-485 communication protocols with encrypted data transmission to enhance system security. Additionally, the DS-K2600-G controller functions reliably offline and incorporates a tamper-proof switch for physical security.

Available Models

• DS-K2601-G (Single-Door Access Controller)
• DS-K2602-G (Two-Door Access Controller)
• DS-K2604-G (Four-Door Access Controller)

Key Features

The DS-K2600-G series is built around a 32-bit high-speed processor, providing robust performance for access control operations. Furthermore, the controller supports TCP/IP communication, EHome 5.0, and ISAPI protocol with specially encrypted data transmission to protect against privacy breaches.

User Management

The DS-K2600-G controller offers comprehensive user management with support for:

• Various user types: normal users, visitors, and blocklisted users
• Up to 100,000 cards (including 97,000 non-visitor cards and 3,000 visitor cards)
• Storage for 300,000 card presentation records
• Recognition and storage of card numbers with maximum length of 20

Security Features

The DS-K2600-G series prioritizes security through:

• Isolated internal current and protective cover over control board
• Support for M1 card encryption
• Multi-door interlock functionality
• Anti-passback function (including cross-controller anti-passback)
• Multiple authentication modes
• First card opening function
• Super card and super password capabilities
• Duress card and code alarm options

Alarm Capabilities

The system provides comprehensive monitoring through various alarm types:

• Card reader tampering alarm
• Door security alarms (unsecured, forced opening, timeout)
• Duress card and code alarms
• Blocklist and illegal card swipe attempt alarms
• Short circuit and open circuit attempt alarms
• IP address conflict detection
• Insufficient storage space alarm

Communication Protocols

The DS-K2600-G series supports:

• RS-485, OSDP, and Wiegand protocol for card readers
• Wiegand interface supporting W26, W34 formats
• Compatibility with third-party card readers using Wiegand interface

Additional Features

• Data preservation after power loss
• Automatic and manual time synchronization
• Backup battery design
• Watchdog function for system reliability
• I/O and event linkage capabilities
• 500 password groups for card or password authentication
• Time zone settings for access control

Ideal Users

The DS-K2600-G series is particularly well-suited for:

• Medium to large enterprises – With support for up to 100,000 cards and 300,000 events, the DS-K2600-G series can handle substantial user volumes in corporate environments.
• Multi-building facilities – The cross-controller anti-passback function makes this system ideal for campuses or facilities with multiple access points.
• High-security installations – The encrypted communication, multiple authentication options, and comprehensive alarm monitoring provide enhanced protection for sensitive areas.
• Facilities requiring offline reliability – With offline operation capabilities and backup battery design, the system maintains functionality during network outages.

Technical Specifications

Power and Processing

• Power Supply: 100 ~ 240 VAC
• Power Consumption:
  • DS-K2601-G: ≤50 W (with load), ≤4 W (without load)
  • DS-K2602-G: ≤100 W (with load), ≤4 W (without load)
  • DS-K2604-G: ≤100 W (with load), ≤4 W (without load)
• Processor: 32-bit
• Storage: 32 M

Communication and Capacity

• Communication: TCP/IP, RS-485, Wiegand (W26/W34)
• Capacity: 100,000 cards, 300,000 events
• LED Indicator: Power supply status, communication status, work status
• Built-in Clock: Supported

Interfaces

• Accessible Card Readers:
  • DS-K2601-G: 2 readers (RS-485), 2 readers (Wiegand)
  • DS-K2602-G: 4 readers (RS-485), 4 readers (Wiegand)
  • DS-K2604-G: 8 readers (RS-485), 4 readers (Wiegand)
• Input Interfaces:
  • DS-K2601-G: Alarm input × 4, door contact × 1, exit button × 1, case input × 2, tamper alarm × 1
  • DS-K2602-G: Alarm input × 4, door contact × 2, exit button × 2, case input × 4, tamper alarm × 1
  • DS-K2604-G: Alarm input × 4, door contact × 4, exit button × 4, case input × 8, tamper alarm × 1
• Output Interfaces:
  • DS-K2601-G: Lock relay × 1, alarm relay × 2
  • DS-K2602-G: Door relay × 2, alarm relay × 4
  • DS-K2604-G: Lock relay × 4, alarm relay × 4

Environmental and Physical

• Working Temperature: -20°C to +65°C (-4°F to +149°F)
• Working Humidity: 10% to 90% (Non-condensing)
• Dimensions (L × W × H): 398 mm × 474 mm × 100 mm (15.7″ × 18.7″ × 3.9″)
• Approvals: CE, FCC, CB, UL294
