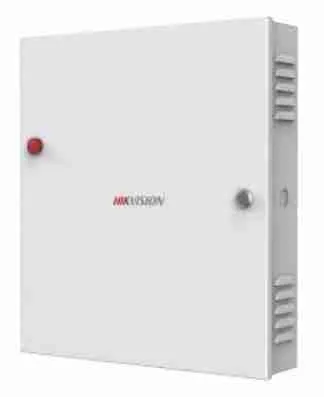

Hikvision DS-K2602T Double Door Network Access Controller

DS-K2602T Access Controller (Main Board)

The DS-K2602T access controller is an advanced security solution designed with the latest structural innovations. This main board controller features both TCP/IP and RS485 communication interfaces with encrypted data transmission, significantly enhancing overall system security. Moreover, the DS-K2602T supports reliable offline operation for uninterrupted access control.

Advanced Security Features

The DS-K2602T incorporates multiple sophisticated security functions:

• Multi-door interlocking capability prevents multiple doors from opening simultaneously
• Anti-passback functionality eliminates unauthorized entry through tailgating
• Multi-card authentication increases security through multiple credential requirements
• First person function allows specific users to grant subsequent access
• Super card and super password options provide administrative override capabilities

Versatile Connectivity Options

The DS-K2602T controller offers comprehensive connectivity for complete access control system integration:

• 4 RS-485 interfaces for connecting compatible devices in a daisy-chain configuration
• 4 Wiegand interfaces supporting both W26 and W34 standards
• Seamless compatibility with third-party card readers using Wiegand interfaces
• TCP/IP network interface for system-wide integration

Reliable System Operation

Reliability remains paramount with the DS-K2602T:

• Online upgrade capability allows firmware updates without physical access
• Remote door control functionality enables centralized management
• Alarm event upload features for immediate security notifications
• Time synchronization via NTP, manual, or automatic methods ensures accurate event logging
• Permanent data retention when powered off preserves critical security information

Robust Input/Output Capacity

The DS-K2602T provides extensive I/O capabilities:

• 2 lock control outputs for direct door management
• 2 exit button inputs for convenient egress
• 2 door contact inputs for monitoring door status
• 4 alarm inputs for integration with external security devices
• 4 alarm output channels for triggering external equipment

Impressive Storage Capacity

The DS-K2602T ensures substantial data management capabilities:

• 100,000 card capacity accommodates large user databases
• 300,000 event storage capacity maintains comprehensive access logs

Ideal User Applications

The DS-K2602T access controller is particularly well-suited for:

• Medium to large enterprise environments requiring centralized access management for up to 100,000 users
• Facilities needing multi-door security with interlocking capabilities for enhanced protection
• Organizations requiring comprehensive event logging with 300,000 event storage capacity
• Installations operating in extreme temperature environments (-20°C to 65°C) where reliability is critical
• Security-conscious operations requiring encrypted data transmission and multiple authentication methods

Technical Specifications

Interface Specifications

• Network interface: TCP/IP
• Lock control: 2
• Exit button: 2
• Door contact input: 2
• Alarm input: 4
• Alarm output: 4
• RS-485: 4
• Wiegand: 4

Capacity Specifications

• Card capacity: 100,000
• Event capacity: 300,000

General Specifications

• Power supply: 12 VDC
• Working temperature: -20°C to 65°C (-4°F to 149°F)
• Power consumption:
  • With load: ≤ 100 W
  • Without load: ≤ 4 W
• Working humidity: 10% to 90% (no condensing)
• Dimensions: 236 mm × 185 mm × 37 mm (9.3″ × 7.3″ × 1.5″)

Available Model

• DS-K2602T
