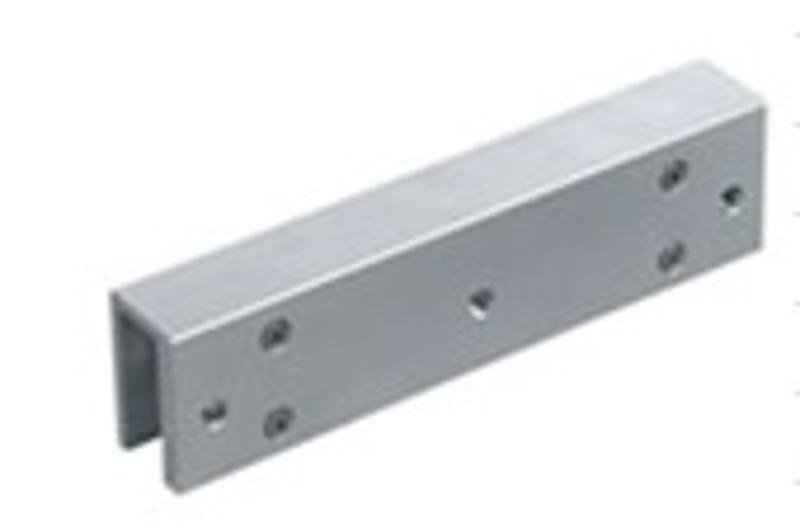

DS-K4H258-U U-Bracket
Specialized Magnetic Lock Mounting Solution
The DS-K4H258-U is a precision-engineered U-bracket specifically designed for the DS-K4H258 series magnetic locks. This specialized mounting accessory enables secure installation of magnetic lock armature plates on frameless glass doors, addressing the unique challenges of glass door security systems.
Premium Construction Features
The DS-K4H258-U utilizes high-quality aldural material, combining the strength and durability needed for security applications with practical installation benefits:
- Constructed from durable aldural alloy for optimal strength-to-weight ratio
- Precisely engineered to securely hold the armature plate in proper alignment
- Features hard anodizing electroplating for superior corrosion resistance
- Designed specifically for lower edge frameless glass door installations
- Weighs only 0.4 kg (0.88 lb) for minimal door stress
Seamless Integration Design
The DS-K4H258-U features a carefully considered design that maintains both security and aesthetics. The bracket’s dimensions (185 mm × 28 mm × 45 mm) provide the perfect balance between structural integrity and visual discretion. Furthermore, the hard anodizing electroplating process ensures long-term durability while providing a clean, professional finish that complements modern glass door designs.
Installation Versatility
The DS-K4H258-U offers specialized mounting options for professional installers:
- Includes precision mounting points for secure attachment
- Compatible with standard installation tools and hardware
- Features strategic hole placement for optimal connection strength
- Maintains proper armature plate alignment for reliable magnetic lock operation
Perfect Fit For Specific Applications
The DS-K4H258-U U-bracket is the ideal solution for:
- Glass door security specialists – The DS-K4H258-U’s specialized design eliminates the installation challenges common with frameless glass doors, providing a professional mounting solution that protects door integrity.
- High-end commercial buildings – With its hardened finish and precise dimensions (185 mm × 28 mm × 45 mm), the DS-K4H258-U maintains aesthetic standards while delivering reliable security performance.
- Access control system integrators – This purpose-built bracket ensures the DS-K4H258 series magnetic locks can be properly installed on glass doors, expanding system compatibility options.
- Retrofit security projects – At just 0.4 kg (0.88 lb), the DS-K4H258-U allows for magnetic lock installation on existing frameless glass doors without excessive weight concerns.
General Specifications
- Dimensions: 185 mm × 28 mm × 45 mm (7.3″ × 1.1″ × 1.8″)
- Weight: 0.4 kg (0.88 lb)
- Material: Aldural alloy
- Compatible with: DS-K4H258 series magnetic locks
- Door compatibility: Lower edge frameless glass door
Physical Construction
- Shell performance: Hard anodizing electroplated
- Precision machined mounting points
- U-shaped design for lower edge mounting
Dimensional Details
- Overall length: 185 mm (7.3″)
- Width: 28 mm (1.1″)
- Height: 45 mm (1.8″)
- Installation hole diameter: Compatible with standard security hardware
Compatibility
- Model: DS-K4H258-U
- Compatible with: DS-K4H258 series magnetic locks
- Specialized for: Frameless glass door installations
