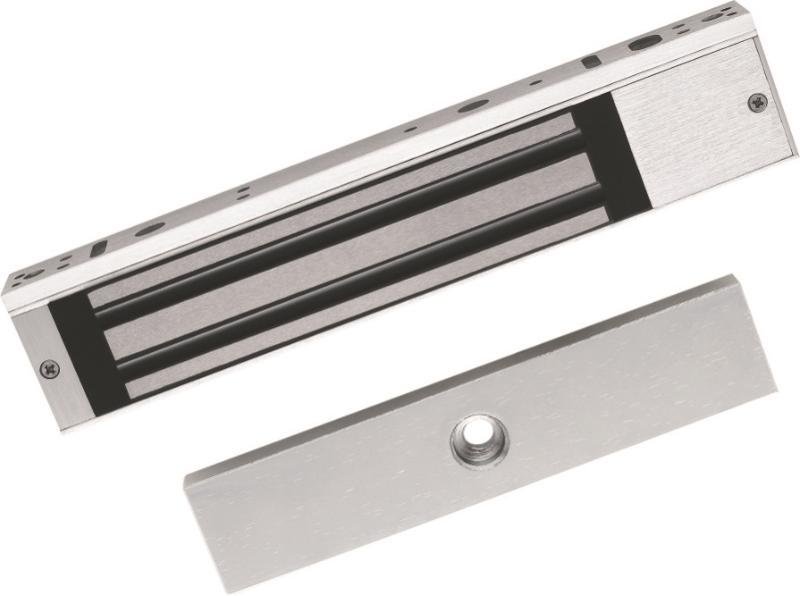

Hikvision DS-K4H258S Single Door Magnetic Lock

DS-K4H258S One-Door Magnetic Lock

Professional-Grade Security Solution

The DS-K4H258S One-Door Magnetic Lock delivers exceptional security for various door types. This versatile security device features a powerful 280 kg (617 lbs) static linear thrust capacity, making it an ideal choice for controlling access in both commercial and high-security environments. Furthermore, the DS-K4H258S operates with dual power options of 12VDC or 24VDC, with 12VDC as the default configuration.

Versatile Application Design

The DS-K4H258S magnetic lock is engineered to accommodate multiple door types with a 90° opening angle:

• Wooden doors
• Glass doors
• Metal doors
• Fireproof doors

Additionally, the lock includes an integrated LED indicator that clearly displays the current door status, allowing for immediate visual verification of security conditions.

Durable Construction

Durability is a core feature of the DS-K4H258S magnetic lock. The device is manufactured with:

• Hard anodizing electroplated shell
• Eco-friendly nickel electroplated lock body
• Eco-friendly zinc electroplated armature plate
• Abrasion-proof materials throughout

These quality materials ensure the DS-K4H258S maintains its performance integrity even in high-traffic environments. Moreover, the magnetic lock operates via current interruption for unlocking, providing a reliable and secure mechanism.

Ideal Users for the DS-K4H258S

• Commercial Building Managers: The 280 kg holding force makes the DS-K4H258S perfect for securing areas with high foot traffic
• Security System Installers: Flexible compatibility with multiple door types simplifies installation across various environments
• Facility Managers for Educational Institutions: Wide operating temperature range (-10°C to 55°C) ensures reliable performance in diverse climates
• Healthcare Facility Directors: The fireproof door compatibility provides additional safety features for sensitive areas

General Specifications

• Indicator: Green Working Status
• Power supply: 12 VDC, 340 mA × 2
• Working temperature: -10°C to 55°C (14°F to 131°F)
• Working humidity: 0 to 95% (relative humidity)

Dimensions and Weight

• Lock Body: 238 mm × 45 mm × 25 mm (9.4″ × 1.8″ × 1.0″)
• Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2″ × 1.5″ × 0.5″)
• Weight: 2.1 kg (4.6 lb)

Materials

• Shell: Hard Anodizing Electroplating Operated
• Lock Body: Eco-friendly Nickel Electroplating Operated
• Armature Plate: Eco-friendly Zinc Electroplating Operated

Performance

• Thrust: Max. 280 kg (617 lb)
• Door types: Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
• Unlock method: Current Interruption
• Surface temperature: ≤ Ambient Temperature +20°C (68°F)

Available Accessories

• DS-K4H258-LZ Value Series Magnetic Lock Bracket
• DS-KAS261 Fingerprint Terminal Kit

The DS-K4H258S magnetic lock combines strength with versatility, thereby creating a comprehensive security solution for virtually any door access control requirement. With its robust construction and user-friendly features, the DS-K4H258S delivers reliable performance for a wide range of security applications.
