Hikvison Fingerprint Access Control DS-K1T804BMF

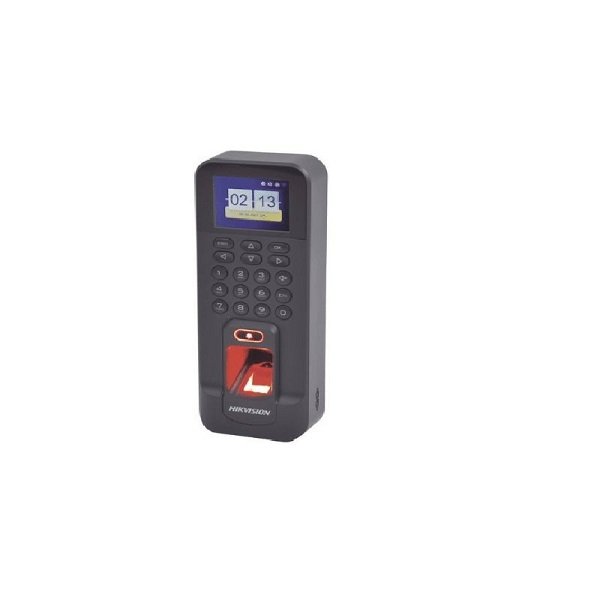

DS-K1T804BMF Fingerprint Access Control Terminal

Integrated Security Solution

The DS-K1T804BMF is a powerful fingerprint access control terminal that seamlessly combines access management and time attendance functionality. This compact device features a 2.4-inch LCD-TFT display with 320 × 240 resolution for clear visual interaction. Built with durability in mind, the DS-K1T804BMF operates efficiently in temperatures ranging from -10°C to +55°C.

Advanced Authentication Technology

The DS-K1T804BMF employs precise optical fingerprint technology with impressive accuracy rates. The fingerprint module delivers:

• Fast recognition in under 1 second
• Minimal false acceptance rate (FAR) of ≤0.001%
• Low false rejection rate (FRR) of ≤0.01%
• Dual matching modes (1:1 and 1:N)

Additionally, the DS-K1T804BMF includes a built-in Mifare 1 card reader with a reading distance of up to 4.5 cm and reading duration of less than 1 second. This dual authentication capability provides enhanced security options for various deployment scenarios.

Robust Storage Capacity

The DS-K1T804BMF offers substantial storage capabilities to handle enterprise-level requirements:

• 3,000 fingerprint templates
• 3,000 card credentials
• 100,000 event records

This extensive storage ensures the DS-K1T804BMF can manage significant user populations while maintaining a comprehensive event history for security auditing purposes.

Versatile Connectivity Options

The DS-K1T804BMF delivers flexible communication options to integrate with existing security infrastructure:

• Wired network via TCP/IP (10/100Mbps, self-adaptive)
• Wi-Fi connectivity support
• Wiegand interface for third-party panel integration
• Various input/output interfaces:
  • 1 lock output
  • 1 exit button
  • 1 door contact input
  • 1 IO input
  • 1 IO output
  • 1 TAMPER
  • 1 USB

Furthermore, the DS-K1T804BMF supports ISUP5.0 and ISAPI protocols, ensuring compatibility with various management platforms.

Multilingual Support

The DS-K1T804BMF features extensive language support including English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian. This multilingual capability makes the DS-K1T804BMF suitable for deployment in diverse global environments.

Compact Design

The DS-K1T804BMF features a sleek, compact design with dimensions of 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″). This space-efficient profile allows for simple surface mounting in various locations without requiring extensive installation space.

Ideal Users

The DS-K1T804BMF is particularly well-suited for:

• Small to medium-sized businesses requiring integrated access control and time attendance tracking, as evidenced by its 3,000 user capacity and 100,000 event storage
• Multinational organizations needing multilingual support across 11 different languages
• Facilities requiring reliable operation in varied environmental conditions with its wide working temperature range (-10°C to +55°C)
• Security-conscious organizations needing dual authentication options (fingerprint and card) with high accuracy rates (FAR ≤0.001%)
• Locations with existing security infrastructure, thanks to comprehensive connectivity options including TCP/IP, Wi-Fi, and Wiegand interface

Technical Specifications

System

• Operation system: Linux

Display

• Size: 2.4-inch
• Resolution: 320 × 240
• Type: LCD-TFT display screen

Audio

• Audio output: 1 loudspeaker, 1 buzzer

Network

• Wired network: TCP/IP, 10/100Mbps, self-adaptive
• Wi-Fi: Support

Interface

• Network interface: 1
• Wiegand: 1
• Lock output: 1
• Exit button: 1
• Door contact input: 1
• IO input: 1
• IO output: 1
• TAMPER: 1
• USB: 1

Capacity

• Card capacity: 3000
• Fingerprint capacity: 3000
• Event capacity: 100,000

Authentication

• Card type: Mifare 1 card
• Card reading distance: 0 to 4.5 cm
• Card reading duration: < 1 s
• Fingerprint module: Optical fingerprint module
• Fingerprint comparing mode: 1:1 and 1:N
• Fingerprint recognition duration: < 1 s
• Fingerprint False Acceptance Rate (FAR): ≤ 0.001 %
• Fingerprint False Rejection Rate (FRR): ≤ 0.01 %

General

• Indicator: Power/status (red/green)
• Power supply: 12 VDC/1 A
• Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
• Working humidity: 10% to 90% (no condensing)
• Dimensions: 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
• Installation: Surface mounting

Language

• Supported languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
