Pro Series Card Terminal DS-K1T105AE

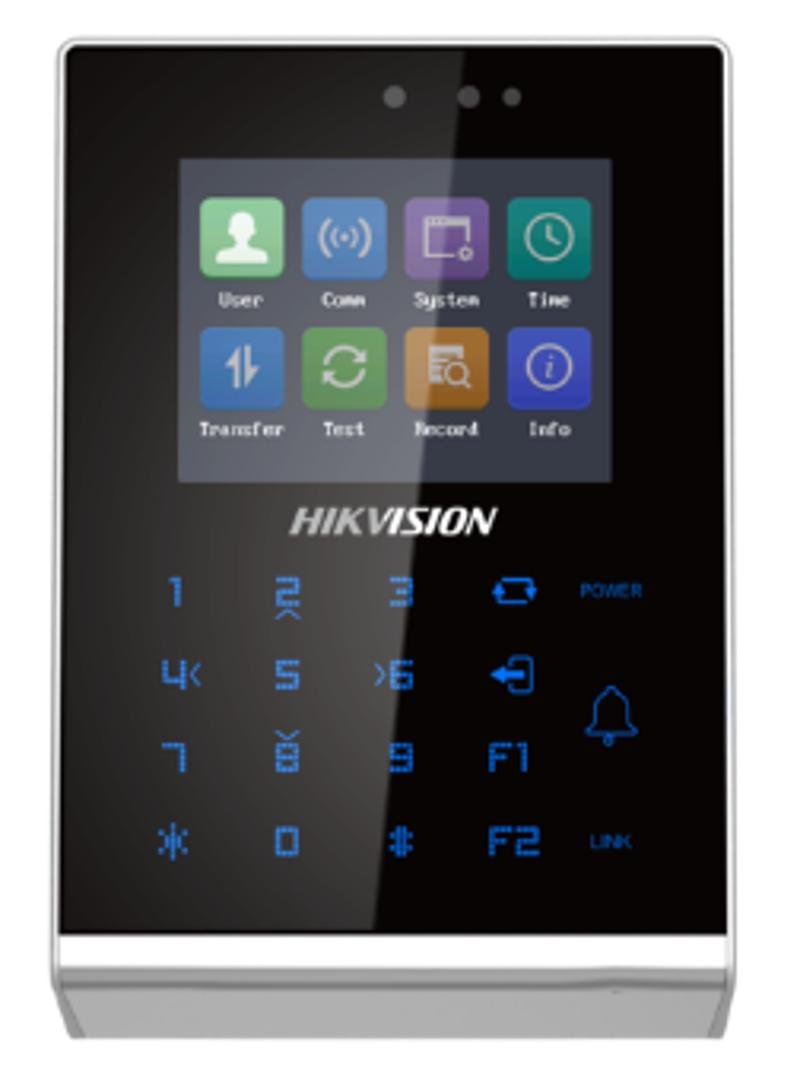

DS-K1T105AE Access Control Terminal

The DS-K1T105AE is a versatile standalone access control terminal equipped with a compact 2.8-inch LCD display screen. This Linux-powered device incorporates both wired network (TCP/IP) and Wi-Fi communication methods, ensuring flexible connectivity options while maintaining robust offline operational capabilities.

Comprehensive Security Features

The DS-K1T105AE terminal prioritizes security through multiple sophisticated mechanisms:

• Tampering detection to prevent physical interference
• Unlocking overtime alarm to monitor door status
• Invalid card swiping detection with configurable thresholds
• Forced opening door alarm for unauthorized entries
• Duress card alarm for emergency situations
• IP addresses conflict detection for network integrity

Furthermore, the terminal includes a dismiss code feature to deactivate alarms when necessary, providing complete control over security protocols.

Versatile Authentication Options

The DS-K1T105AE supports numerous door opening configurations:

• Card-only access for quick entry
• Card + password combination for enhanced security
• Exit button integration for convenient departures
• RS-485 and Wiegand (26/34) communication for external card readers
• EM card reading capability with fast response times (< 1 second)
• Card reading range of 0 to 5 cm for consistent performance

High-Performance Specifications

The DS-K1T105AE delivers impressive performance metrics:

• 100,000 valid card capacity to accommodate large user bases
• 300,000 access control events storage for comprehensive audit trails
• Touch-sensitive keypad with blue light display for intuitive operation
• Supports communication with 4 control clients simultaneously
• Real-time event uploading capability with offline event storage
• Data preservation after power interruptions for system reliability

User Interface and Display

The DS-K1T105AE features:

• 2.8-inch LCD screen with 320 × 240 resolution
• Time and date display for user reference
• Standalone configuration settings for customized operation
• Built-in electronic clock with watchdog program ensuring accurate timekeeping
• Touch-responsive interface with blue backlighting

Ideal Users for the DS-K1T105AE

This access control terminal is particularly well-suited for:

• Medium to large businesses – With capacity for 100,000 cards and 300,000 events, the DS-K1T105AE can handle substantial user traffic
• Organizations requiring multi-level security – Multiple authentication modes and alarm features make this ideal for sensitive areas
• Facilities with variable environmental conditions – Operating temperature range of -30°C to 60°C (-22°F to 140°F) ensures reliability in extreme environments
• Network-integrated security systems – ISUP protocol support enables public network communication while maintaining security integrity
• Sites requiring offline capability – Data retention after power loss and offline event storage prevent security gaps during network outages

Technical Specifications

System

• Operation system: Linux

Screen

• Size: 2.8-inch
• Resolution: 320 × 240
• Type: Display screen

Audio

• Audio output: Loudspeaker

Network

• Wired network: 100 M/1000 M self-adaptive
• Wi-Fi: Supported
• Communication protocol: TCP/IP

Interface

• Network interface: 1
• RS-485: 1
• Wiegand: 1
• Lock output: 1
• Exit button: 1
• Door contact input: 1
• IO input: 2
• IO output: 1
• TAMPER: 1
• USB: 1

Capacity

• Card capacity: 100,000
• Event capacity: 300,000

Authentication

• Card reading distance: < 1 second
• Card reading duration: 0 to 5 cm

Power and Environmental

• Power supply: 12 VDC/2 A
• Working temperature: -30°C to 60°C (-22°F to 140°F)
• Working humidity: 10% to 90%

Physical Dimensions

• Dimensions: 137 mm × 142 mm × 35 mm (5.4″ × 5.6″ × 1.4″)

The DS-K1T105AE access control terminal represents a balanced combination of security, functionality, and adaptability. Its comprehensive feature set, coupled with robust storage capacity, makes the DS-K1T105AE suitable for diverse access control applications across various industries and environments.
