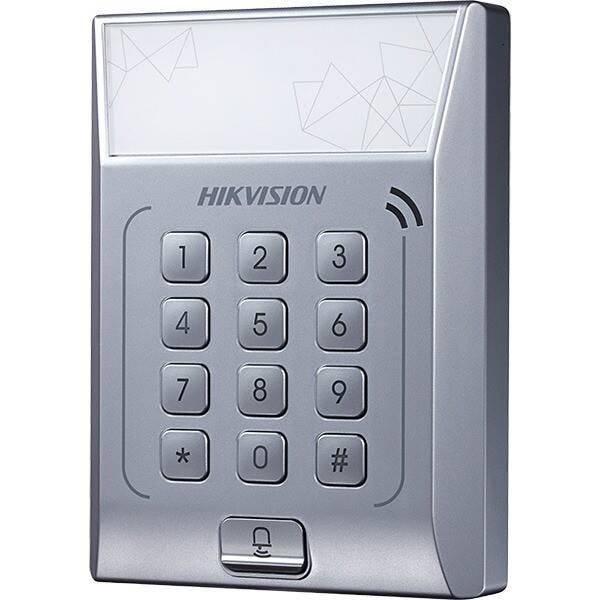

Value Series Card Terminal DS-K1T801E

Reliable Card Reading Technology

The DS-K1T801E incorporates fundamental access verification:

• 125 KHz EM card reading capability
• Consistent reading distance for smooth user experience
• Fast card recognition with minimal delay
• LED indicator confirms successful reads
• Supports standard proximity card formats

Streamlined Standalone Operation

The DS-K1T801E functions effectively without complex infrastructure:

• Independent operation without requiring additional controllers
• 2,000 card capacity sufficient for small businesses
• 10,000 event storage for comprehensive access logs
• Built-in relay for direct electric lock control
• Self-contained access management functionality

Simplified User Interface

The DS-K1T801E features practical design elements:

• Intuitive indicator LEDs display operational status
• Minimalist button interface for basic functions
• Clear visual feedback for access grant/deny decisions
• Audible beeper for operation confirmation
• Straightforward enrollment and management process

Essential Integration Options

The DS-K1T801E provides standard connectivity capabilities:

• Wiegand output interface for controller connection
• RS-485 communication port for extended networking
• Exit button input for convenient egress
• Door contact monitoring for status awareness
• Alarm output capability for security integration

Compact Physical Design

The DS-K1T801E features space-efficient construction:

• Slim profile ideal for door frame mounting
• Lightweight yet durable housing materials
• Simple surface-mount installation process
• Minimalist aesthetic complements various decors
• Indoor-rated construction for controlled environments

Fundamental Security Features

The DS-K1T801E includes basic protection mechanisms:

• Tamper switch detects unauthorized removal attempts
• Invalid card attempt lockout capability
• Adjustable door relay time settings
• External alarm triggering options
• Encrypted card data processing

Cost-Effective Implementation

The DS-K1T801E delivers essential functionality with value focus:

• Economical hardware design reduces acquisition costs
• Minimal maintenance requirements
• Low power consumption for reduced operational expense
• Simple installation reduces deployment costs
• Core features without unnecessary complexity

Ideal For These Users

• Small Retail Shops – The 2,000 card capacity and standalone functionality provide affordable employee access control for small businesses with limited entry points and budget constraints
• Small Office Managers – The straightforward operation and minimal configuration requirements make this terminal suitable for small professional offices without dedicated IT staff
• Residential Buildings – The compact design and basic functionality offer cost-effective access control for apartment buildings or gated communities with modest security requirements
• Storage Facilities – The essential access logging and direct lock control provide basic security monitoring for rental storage units or equipment rooms

Technical Specifications

Card Reading Performance

• Reading Technology: 125 KHz EM proximity cards
• Reading Distance: 2-6 cm (0.8-2.4 inches)
• Card Capacity: 2,000 cards
• Reading Time: <1 second
• Card Format: Standard EM cards

Storage & Processing

• Event Capacity: 10,000 records
• CPU: 32-bit processor
• Memory: Built-in non-volatile memory
• Offline Operation: Full functionality
• Record Backup: Manual export option

Connectivity

• Wiegand Interface: 26/34 bit output
• RS-485: Half-duplex communication
• Door Contact: 1 input
• Exit Button: 1 input
• Alarm Output: 1 channel

Physical Parameters

• Dimensions: 102 × 102 × 33 mm (4.0 × 4.0 × 1.3 inches)
• Installation: Surface mount
• Housing Material: ABS plastic
• Color: White/Black
• Weight: Approximately 120g (0.26 lb)

Electrical

• Operating Voltage: DC 12V
• Current Consumption: ≤100 mA
• Idle Current: ≤35 mA
• Lock Relay Output: Form C, 3A/30VDC
• Power Protection: Reverse polarity protection

Environmental

• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Environment: Indoor use
• Protection Level: IP42
• Mean Time Between Failures: >50,000 hours

User Interface

• Visual Indicator: Tri-color LED (Red/Green/Blue)
• Audio Indicator: Built-in buzzer
• Buttons: Reset and programming buttons
• Enrollment Method: Master card or software
• Status Display: LED indicators for power and door status

Package Contents

• DS-K1T801E Card Terminal
• Mounting Plate
• Mounting Screws
• Quick Start Guide
• Terminal Connector
