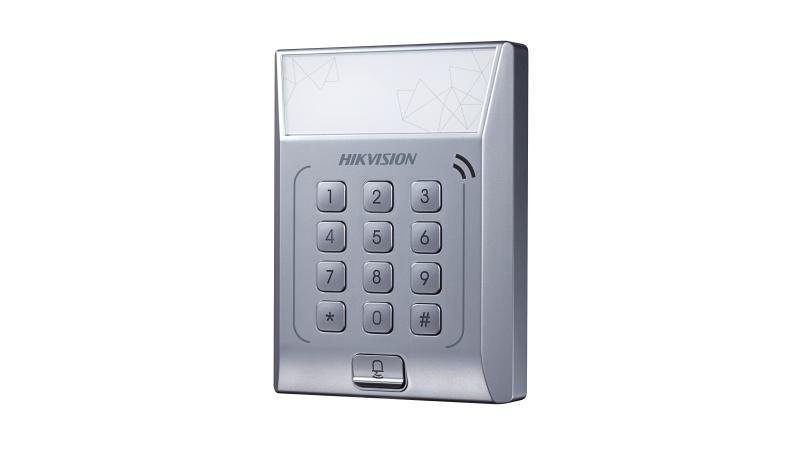

Value Series Card Terminal DS-K1T801M

DS-K1T801 Series Access Control Terminal

The DS-K1T801 Series offers robust standalone access control solutions with two specialized models: DS-K1T801E for EM card compatibility and DS-K1T801M for Mifare card environments. Each terminal operates on a powerful 32-bit processor, delivering reliable performance for secure entry management.

Advanced Card Management System

The DS-K1T801 Series terminals provide comprehensive card management capabilities. With storage for up to 3,000 authorized card numbers, these devices offer flexible authentication methods including:

• Card-only access
• Card and password dual authentication
• Password fallback option when using card authentication mode

Additionally, the system can store up to 3,000 unique card passwords, ensuring versatile security options for various access requirements.

Reliable Hardware Design

The DS-K1T801 Series incorporates several hardware features designed for durability and dependability:

• Watchdog design for system stability monitoring
• Permanent data retention after power interruptions
• 13-key numeric keypad with function buttons
• Power/status LED indicator
• Audible beeper for operation confirmation

Furthermore, the DS-K1T801 Series includes essential input and output interfaces. The terminals connect to an exit button and door sensor for comprehensive entry/exit management, while also providing connections for a doorbell and electronic lock output.

Model-Specific Card Technology

The DS-K1T801 Series offers two distinct models with specialized card reading capabilities:

DS-K1T801E:

• Supports standard EM card technology
• Includes ID card and ID card number reading capabilities

DS-K1T801M:

• Supports Mifare card technology
• Includes Mifare card number reading capabilities

Compact and Versatile Design

The DS-K1T801 Series features a compact design measuring just 126.5mm × 94.5mm × 24mm (4.98″ × 3.72″ × 0.94″), making it suitable for various installation environments. Moreover, the terminals operate across a wide temperature range from -20°C to 65°C (-4°F to 149°F) and humidity conditions of 10% to 90% without condensation.

Ideal Users for DS-K1T801 Series

This access control terminal is particularly well-suited for:

• Small to Medium Businesses – With storage for 3,000 card credentials, the DS-K1T801 Series accommodates organizations with moderate staff sizes.
• Facilities with Extreme Environments – The wide operating temperature range (-20°C to 65°C) makes the DS-K1T801 Series suitable for both indoor and harsh outdoor installations.
• Security-Conscious Organizations – Dual authentication options with card and password combinations provide enhanced security layers.
• Existing Card System Integrators – Choose between EM card (DS-K1T801E) or Mifare card (DS-K1T801M) compatibility to match existing identification systems.
• Standalone Security Applications – The DS-K1T801 Series operates independently without requiring connection to centralized systems.

Technical Specifications

Processor

• 32-bit processor

Storage

• Storage for 3,000 legal card information

Card Technology

• DS-K1T801E: EM Card
• DS-K1T801M: Mifare Card

Input Interface

• Exit Button × 1
• Door Sensor × 1

Output Interface

• Doorbell × 1
• E-lock Output × 1

User Interface

• 13 Keys (0-9, *, #, Doorbell)
• Power/Status LED indicator
• Beeper voice prompt

Electrical Parameters

• Working voltage: 12V DC
• Working current: 0.17A (without load)

Environmental Specifications

• Working Temperature: -20°C to 65°C (-4°F to 149°F)
• Working Humidity: 10% to 90% (No Condensing)

Physical Specifications

• Dimension: 126.5(L)mm × 94.5(W)mm × 24(H)mm (4.98″ × 3.72″ × 0.94″)

Security Features

• Supports authentication methods: card and card & password
• Door access via card password if authentication method is card
• Supports up to 3,000 card passwords
• Data remains permanently saved after power-off
