Value Series Network Wire Card Terminal DS-K1T802E

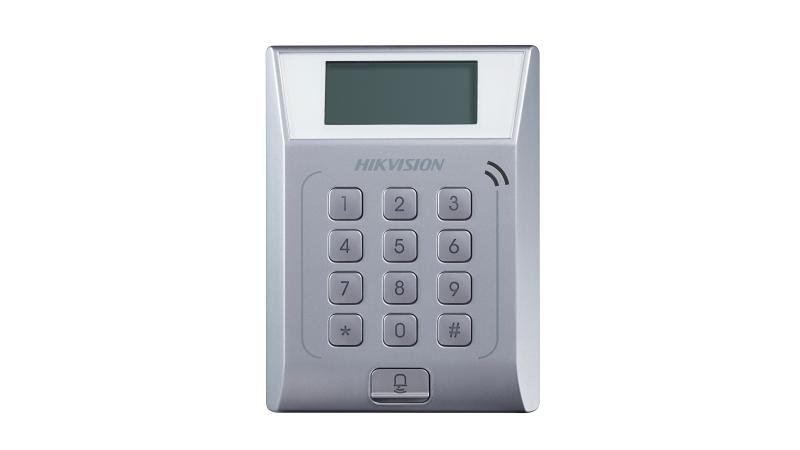

DS-K1T802 Series Access Control Terminal

The DS-K1T802 Series Access Control Terminal represents a secure entry management solution with two distinct model variants – the DS-K1T802E supporting EM cards and the DS-K1T802M designed for Mifare card compatibility. This standalone device delivers robust access control capabilities through a sleek, compact design measuring just 126.5mm × 94.5mm × 24mm.

Powerful Processing & Storage Capabilities

Powered by a 32-bit processor, the DS-K1T802 terminals offer considerable storage capacity. The system maintains:

• Storage for up to 3,000 authorized card entries
• Capacity to log 10,000 event records
• Permanent data retention after power loss through watchdog design

This significant storage capability ensures the terminal can function effectively in busy environments where numerous credentials must be managed simultaneously.

Versatile Authentication Methods

The DS-K1T802 Series provides multiple authentication paths to accommodate various security requirements:

• Card-only access
• Card plus password combination
• Super card and super password options
• First card functionality
• Remote door opening capability

Additionally, the terminal supports various card classifications including normal, disabled, blocklist, patrol, super, and duress categories. This flexibility allows security administrators to implement nuanced access policies throughout their facilities.

Enhanced Security Features

Security remains paramount with the DS-K1T802 Series, which incorporates several protective measures:

• Duress alarm functionality with self-defined duress password option
• Comprehensive offline event alarming for:
  • Insufficient storage
  • System offline status
  • Door unsecured conditions
  • Forced entry attempts
  • Door timeout situations

Furthermore, the system includes self-defined alarm elimination numbering, providing administrators with granular control over security protocols.

User-Friendly Interface Elements

The DS-K1T802 terminals feature thoughtfully designed interface components:

• 128×64 dot matrix STN screen displaying time, date, and week information
• 13-key keypad (0-9, *, #, and doorbell)
• Communication/status LED indicator
• Audible beeper for voice prompts

These interface elements combine to create an intuitive user experience while maintaining robust security standards.

Network Connectivity & Time Management

The DS-K1T802 Series excels in network integration with:

• TCP/IP network communication support
• Time synchronization via NTP, manual input, or automatic methods
• Offline working capability alongside online upgrade options

The terminal’s ability to function both online and offline ensures continuous operation even during network disruptions.

Ideal Users

The DS-K1T802 Series is particularly well-suited for:

• Small to medium businesses requiring cost-effective access control with extensive card storage (3,000 cards) and event logging (10,000 records)
• Facilities operating in challenging environments, benefiting from the terminal’s wide temperature range (-20°C to 65°C) and humidity tolerance (10% to 90%)
• Organizations requiring multi-authentication security protocols with the card/password combination capabilities
• Properties needing offline functionality during network interruptions while maintaining comprehensive security measures
• Installations where space efficiency matters, given the terminal’s compact dimensions (126.5mm × 94.5mm × 24mm)

Technical Specifications

Processor & Storage

• Processor: 32-bit
• Card Storage: 3,000 legal card information entries
• Event Records: 10,000 events

Communication & Connectivity

• Communication Type: TCP/IP
• Card Types:
  • DS-K1T802E: EM Card
  • DS-K1T802M: Mifare Card

Interface Options

• Input Interface: Exit Button × 1, Door Sensor × 1
• Output Interface: Doorbell × 1, E-lock Output × 1
• Keypad: 13 Keys (0-9, *, #, Doorbell)
• Display: STN Screen (Resolution 128*64)
• Indicators: Communication/Status LED, Beeper for voice prompts

Power Requirements

• Working Voltage: 12V DC
• Working Current: 0.17 A (without load)

Environmental Parameters

• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Operating Humidity: 10% to 90% (no condensing)

Physical Dimensions

• Size: 126.5(L)mm × 94.5(W)mm × 24(H)mm (4.98″ × 3.72″ × 0.94″)
