Value Series Network Wire Card Terminal DS-K1T802M

DS-K1T802 Series Access Control Terminal

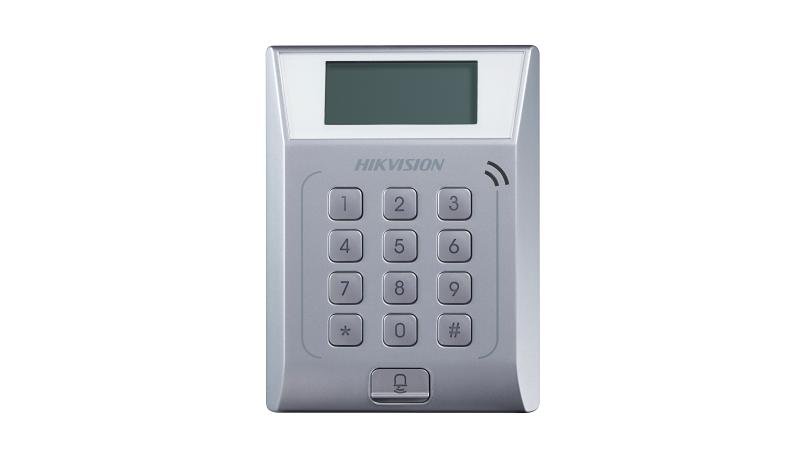

The DS-K1T802 Series by Hikvision is a versatile access control terminal powered by a 32-bit processor. This compact device measures just 126.5mm×94.5mm×24mm and operates as a complete standalone security solution. The terminal features a clear 128×64 Dot Matrix STN screen for displaying essential information such as time, date, and week.

Comprehensive Card Recognition Technology

The DS-K1T802 Series comes in two specific model variants to accommodate different security requirements:

• DS-K1T802E: Specialized for EM card recognition and number reading
• DS-K1T802M: Engineered for Mifare card recognition and number reading

Both models feature the same robust security infrastructure while supporting their respective card technologies.

Advanced Security Features

The DS-K1T802 Series includes multiple authentication options to enhance premise security. Moreover, the system incorporates sophisticated alarm capabilities:

• Multi-authentication modes: card-only or card-and-password verification
• Support for exit button functionality
• Duress alarm function with self-defined duress password options
• First card, remote open door, super card, and super password capabilities
• Offline event alarms for multiple scenarios:
  • Insufficient storage detection
  • Offline status monitoring
  • Door unsecured alerts
  • Force opening detection
  • Door opening timeout warnings

Additionally, the DS-K1T802 supports self-defined number input for eliminating alarms when needed.

Expansive Storage Capacity

The terminal efficiently manages security data with:

• Storage for up to 3,000 legal card information entries
• Capacity for 10,000 event records
• Permanent data retention even after power loss thanks to the terminal’s watchdog design

Networking and Integration

Communication flexibility comes standard with TCP/IP network connectivity. Furthermore, time synchronization occurs via:

• NTP protocol support
• Manual time setting
• Automatic synchronization options

Multiple Card Type Support

The DS-K1T802 Series recognizes and processes various card types to streamline access management:

• Normal cards for regular access
• Disabled cards for restricted access
• Blocklist cards for denied access
• Patrol cards for security rounds
• Super cards for administrative access
• Duress cards for emergency situations

User Interface Elements

The terminal features a practical interface with:

• 13-key keypad (digits 0-9, *, #, and doorbell)
• Communication/status LED indicator
• Audio feedback through the integrated beeper

Ideal For

• Small to Medium Businesses: With storage for 3,000 cards, the DS-K1T802 efficiently handles workforce access needs while maintaining detailed access logs.
• Facilities with Basic Security Requirements: The multi-authentication modes and alarm functions provide essential security without complexity.
• Environments with Temperature Variations: Operating in conditions from -20°C to 65°C makes this terminal suitable for various installation locations.
• Locations with Unstable Power: Data remains secure after power loss, ensuring continuity of security operations.

Technical Specifications

Processor

• 32-bit processor

Storage

• 3,000 legal card information entries
• 10,000 event records

Communication

• TCP/IP network protocol

Card Types

• DS-K1T802E: EM Card
• DS-K1T802M: Mifare Card

Interfaces

• Input: Exit Button × 1, Door Sensor × 1
• Output: Doorbell × 1, E-lock Output × 1

Display & Controls

• 128×64 STN Screen
• 13 Keys (0-9, *, #, Doorbell)
• Communication/Status LED indicator
• Audio beeper for voice prompts

Power Requirements

• Working Voltage: 12V DC
• Working Current: 0.17A (without load)

Environmental Parameters

• Working Temperature: -20°C to 65°C (-4°F to 149°F)
• Working Humidity: 10% to 90% (No Condensing)

Physical Dimensions

• 126.5(L)mm × 94.5(W)mm × 24(H)mm (4.98″ × 3.72″ × 0.94″)
